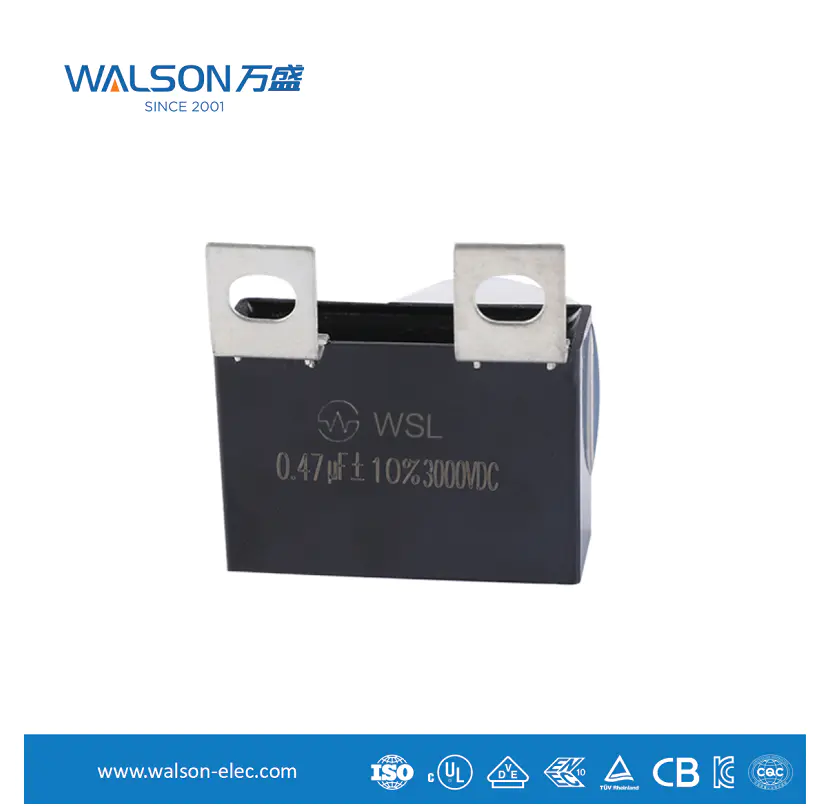

Characteristics and applications of Snubber capacitors

What is a snubber capacitor?

A snubber capacitor, also known as a buffer capacitor , is a special type of capacitor used to suppress voltage spikes in a circuit , reduce electromagnetic interference , and protect switching devices . It is typically connected in series with a resistor and then in parallel across the switching device (such as an IGBT, MOSFET, or thyristor) that needs protection, or across a node experiencing a voltage surge.
Its core function is not to provide energy, but to "absorb" or "buffer" harmful, momentary excessive energy.

Key characteristics

The characteristics of a snubber capacitor determine its performance and applicable scenarios. Its main features are as follows:

1. High voltage withstand and high pulse withstand capability

It must be able to withstand instantaneous high voltage spikes that are much higher than the normal operating voltage of the circuit.
Its design and materials enable it to withstand repeated, high-intensity current pulses without damage.

2. Low equivalent series inductance

This is one of the critical parameters of a snubber capacitor. Voltage spikes change extremely rapidly, and if the capacitor 's parasitic inductance is too large, it will hinder the rapid change in current, thus failing to absorb the spike in time.

To reduce ESL, snubber capacitors typically employ special structures, such as:

Laminated thin-film structures , such as polypropylene film capacitors, are the commonly used snubber capacitors.

Flat package : Reduces the current loop area, thereby reducing inductance.

Multi-pin design : Provides parallel internal connections, further reducing ESL and equivalent series resistance.

3. Low equivalent series resistance

Low ESR means that the capacitor generates less heat when absorbing energy, resulting in high efficiency and long lifespan.
In high-frequency switching applications, temperature rise caused by ESR is one of the main causes of capacitor failure.

4. High stability and long lifespan

snubber capacitors operate in harsh electrical environments and require temperature stability, frequency characteristics, and a long service life. Polypropylene film capacitors excel in these aspects.

5. Rapid response capability

It can respond quickly to voltage changes at the nanosecond level and charge and discharge in a timely manner.

Core Function and Working Principle

Simply put, a snubber capacitor utilizes the fundamental characteristic that the voltage across a capacitor cannot change abruptly .
When a voltage spike occurs : the capacitor provides a low-impedance path, instantly absorbing (charging) the excess charge generated by the spike, thereby "flattening" the voltage peak.

After the voltage spike passes : the capacitor slowly releases (discharges) the stored energy through the resistor connected in series with it, dissipating the absorbed energy as heat in the resistor.

The function of series resistors :

Limit the discharge current of the capacitor to prevent excessive inrush current from forming on the switching device when it is turned on.
Damping may be achieved by an LC resonant circuit consisting of capacitors and circuit parasitic inductance to prevent oscillation.
Main application areas
Snubber capacitors are widely used in all power electronic circuits with fast switching action and inductive loads.

1. Switching power supply
Used to absorb voltage spikes on power switching transistors, protect MOSFETs or IGBTs, reduce switching noise, and improve electromagnetic compatibility.

2. Motor Drives and Frequency Converters
In an inverter bridge, voltage overshoot is connected in parallel with power devices such as IGBTs to suppress voltage overshoot during switching, which is mainly caused by inductive loads such as motors and parasitic inductance in the lines. This is crucial for protecting expensive power modules.

3. Power Factor Correction Circuit
In PFC boost circuits, buffer circuits help smooth the voltage at switching nodes, improving efficiency and reliability.

4. Inverter/Converter
In equipment such as solar inverters and UPS, it is used to protect the main power switching devices and ensure stable system operation.

5. Induction heating
These applications involve high switching frequency, high power, and extremely high voltage and current stress, making snubber capacitors an essential protective component.

6. Semiconductor laser driving circuit
Used to suppress spikes and ringing of the drive current pulse, ensuring the stability and lifespan of the laser output.

7. Automotive Electronics
In electric vehicle/hybrid vehicle motor controllers and DC-DC converters, the working environment is harsh and the reliability requirements are extremely high, so high-performance snubber capacitors are widely used.

8. Induction cooker
Absorbing the reverse peak voltage on the power transistor is a typical low-cost, high-reliability application.
