WSL series Snubber Capacitor for IGBT (Lug Terminals) WSL series Snubber Capacitor for IGBT (Lug Terminals)
  • WSL series Snubber Capacitor for IGBT (Lug Terminals)
  • WSL series Snubber Capacitor for IGBT (Lug Terminals)

WSL series Snubber Capacitor for IGBT (Lug Terminals)

Features：
High-temperature resistant PP film as dielectric, no inductance winding structure
Solvent-resistant plastic housing, potted with thermally conductive resin
Low equivalent series resistance and ability to withstand high ripple current
Able to withstand the impact of high-peak current
Low capacitance loss, low self-inductance, low internal temperature
Long service life, Outstanding flame retardant property (level of UL94V-0)
Contact Us PDF Download

Share:

PREV：WST series Snubber/Resonat Capacitor (Axial-Type)NEXT：WSC series Snubber Capacitor for IGBT for PCB
Typical Applications：
Widely used in high voltage, high-frequency circuits, Especially suitable  for IGBT snubber circuit

Specifications

Reference Standard GB/T 17702 (IEC 61071)
Climatic Category 40/105/56
Rated Temperature 85℃
Operating temperature -40~105℃
UN Normal Voltage 630/850/1000/1200/1600/2000/2500/3000Vdc 420/450/500/600/650/700/725/750Vac
Capacitance Tolerance ±5%（J）±10%（K）
Voltage Proof 1.5UN (10s)
RIns Insulation Resistance CN≤0.33μF：≥15000MΩ CN＞0.33μF：≥5000s（20℃ 100Vdc, 1min）
tanδ Dissipation Factor ≤0.0005 (1kHz, 20℃)
tEL Expected Lifetime 100,000h@UN, Θhs=70℃

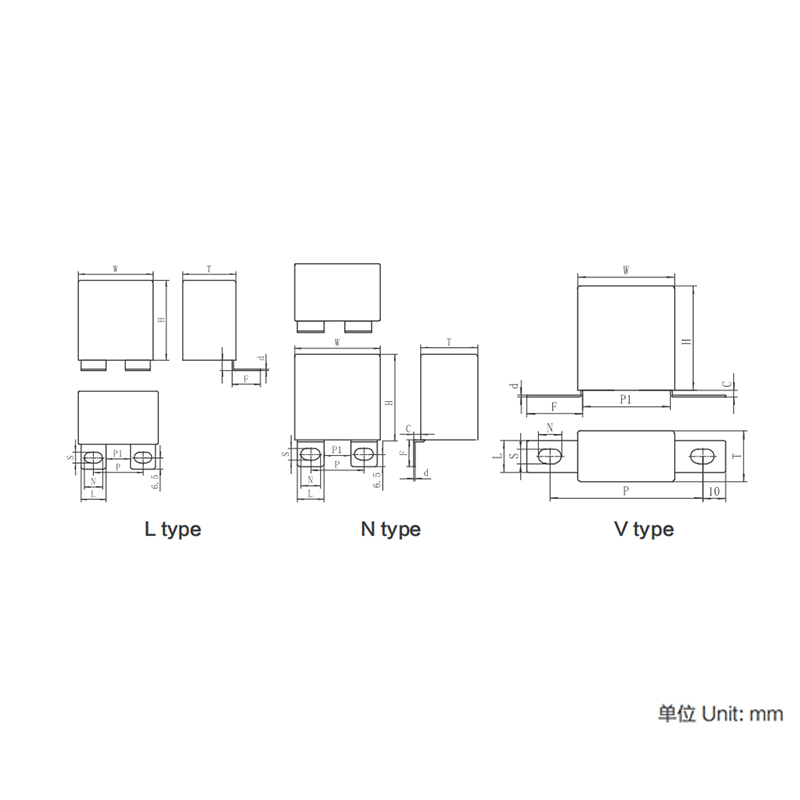

Dimensions(mm)

CN
(μF)
 W
(mm)		 H
(mm)		 T
(mm)
Ls
(nH)
 dV/dt
(V/μs)
ESR
@100kHz
(mΩ)
Imax
(A)
 note
630Vdc(420Vac) 0.68 37 25 15 23 900 5 9
1 37 30 16 23 900 5 12
1.5 37 34 20 23 900 4.5 17
22 42 40 20 29 600 4 18.5
3.3 42 44 24 29 600 3.5 20
4.7 42 45 30 29 600 3.5 23
6 42 43 42 29 600 3 25
7 57 45 30 33 360 2.5 25
9 57 50 35 33 360 2.5 29
850Vdc(450Vac) 0.47 37 25 15 23 1200 5 9
0.68 37 30 16 23 1200 5 12
1 37 34 20 23 1200 5 14
1.5 37 34 20 23 1200 5 18
1.5 42 40 20 29 750 4.5 18.5
2.2 42 40 20 29 750 4.S 19.5
3.3 42 45 30 29 750 4.5 21.5
4.7 57 45 30 33 450 4 24.5
6 57 50 35 33 450 4 26
1000Vdc(500Vac) 0.47 37 25 15 23 1300 5 9
0.68 37 30 16 23 1300 S 10.5
1 37 34 20 23 1300 4.5 15
1.5 42 40 20 29 850 4.5 16
2.2 42 44 24 29 850 4 20
3.3 42 43 42 29 850 4 22
3.3 57 45 30 33 500 4 20
4.7 57 50 35 33 500 4 22
1200Vdc(600Vac) 0.33 37 25 15 23 1500 4.5 9
0.47 37 30 16 23 1500 4.5 11
0.68 37 34 20 23 1500 4.5 12.5
1 42 40 20 29 950 4 16
1.5 42 44 24 29 950 4 19.5
2.2 42 43 42 29 950 4 21
2.2 57 45 30 33 600 3.8 20
3.3 57 50 35 33 600 3.8 23
1600Vdc(650Vac) 0.22 37 25 15 23 1900 6 8
0.33 37 30 16 23 1900 6 10
0.47 37 34 20 23 1900 5.5 14
0.68 42 40 20 29 1250 4 16
1 42 45 30 29 1250 4 19.5
1.5 42 43 42 29 1250 4 21
1.5 57 45 30 33 750 3.5 22
2 57 50 35 33 750 3.5 24
2000Vdc(700Vac) 0.1 37 25 15 23 2300 8 7
0.15 37 25 15 23 2300 8 8.5
0.22 37 30 16 23 2300 6 10
0.33 37 34 20 23 2300 6 13
0.47 42 40 20 29 1300 4 15.5
0.68 42 44 24 29 1300 3.5 18.5
1 42 43 42 29 1300 3.5 21
1 57 45 30 33 850 4 24
1.5 57 50 35 33 850 4 24
2500Vdc(725Vac) 0.068 37 25 15 23 3300 8.5 6.5
0.1 37 30 16 23 3300 8.5 8
0.15 37 34 20 23 3300 8 11
0.22 42 40 20 29 2100 4 14
0.33 42 44 24 29 2100 43.5 15.5
0.47 42 45 30 29 2100 3.5 18
0.68 42 43 42 29 2100 3.5 18.5
0.68 57 45 30 33 1200 3.5 19
1 57 50 35 33 1200 3.5 19.5
3000Vdc(750Vac) 0.047 37 25 15 23 3500 8.5 7.5
0.068 37 30 16 23 3500 8 9
0.1 37 34 20 23 3500 7.5 10.5
0.15 37 34 20 23 3500 7 12
0.22 42 40 20 29 2100 5 13
33 42 45 30 29 2100 4.5 16.5
0.47 42 43 42 29 2100 4 18
0.47 57 45 30 33 1200 4 18.5
0.68 57 50 35 33 1200 4 19
