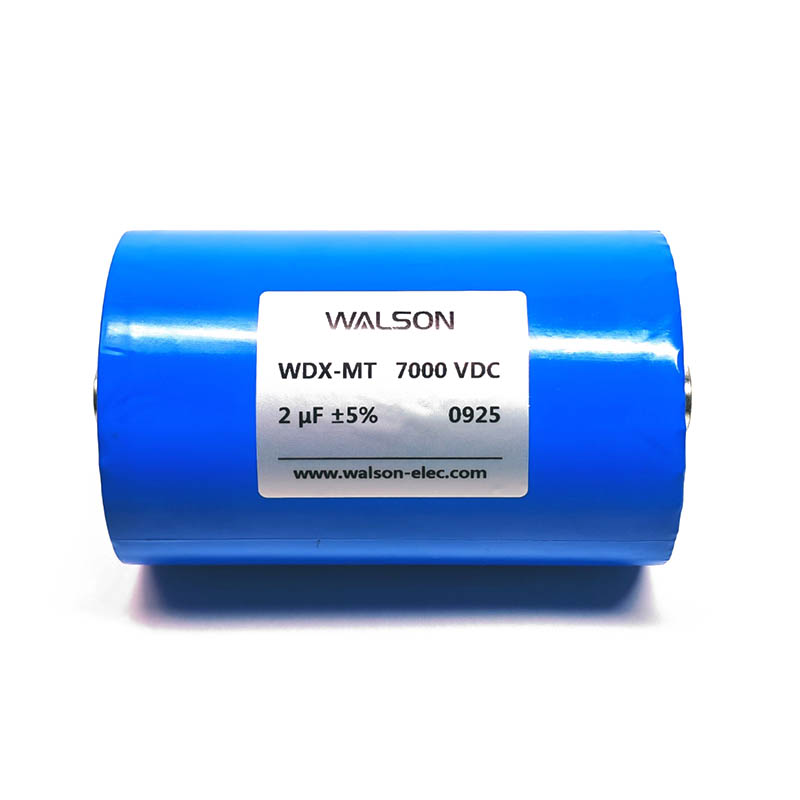

Core Technologies of Capacitors Explained — From Loss to Series-Parallel Connections, Mastering the "Energy Code" of Electronic Components

In electronic circuit design, capacitors may be small, but they play critical roles in energy storage, filtering, coupling, and more. However, real-world capacitors are not ideal components. Their energy loss, dielectric withstand voltage, and connection methods directly affect system performance and reliability.

The loss tangent (tanδ) is a core indicator of capacitor quality. In an ideal capacitor, current leads voltage by 90°. In practice, due to dielectric polarization and leakage current, a loss angle δ is introduced. The smaller tanδ is, the higher the quality. Polypropylene (PP) and NPO ceramic capacitors can achieve tanδ below 0.0002, while aluminum electrolytic capacitors range from 0.05 to 0.3, making them suitable for low-frequency, high-capacitance applications.

The breakdown electric field strength determines the voltage withstand limit of a capacitor. The aluminum oxide dielectric in aluminum electrolytic capacitors can achieve a breakdown strength of 600–1000 kV/mm, but a safety margin of 2–3 times the operating voltage must be reserved. Rising temperature and frequency significantly reduce breakdown strength, requiring close attention in design.

Specific properties reflect performance per unit volume or mass. Supercapacitors can achieve a specific energy of 1–10 Wh/kg, far exceeding traditional aluminum electrolytic capacitors (0.01–0.1 Wh/kg), making them suitable for energy recovery. Multilayer ceramic capacitors (MLCCs) excel in high-frequency decoupling applications.

Series and parallel connections are key to flexible application. Parallel connections increase capacitance, reduce ESR, and improve reliability. Series connections increase voltage rating but require balancing resistors to prevent uneven voltage distribution. Engineers must make comprehensive choices based on capacitance, voltage rating, ESR, and space constraints.

By mastering these core characteristics, capacitors can deliver value in power supplies, communications, new energy, and beyond.
