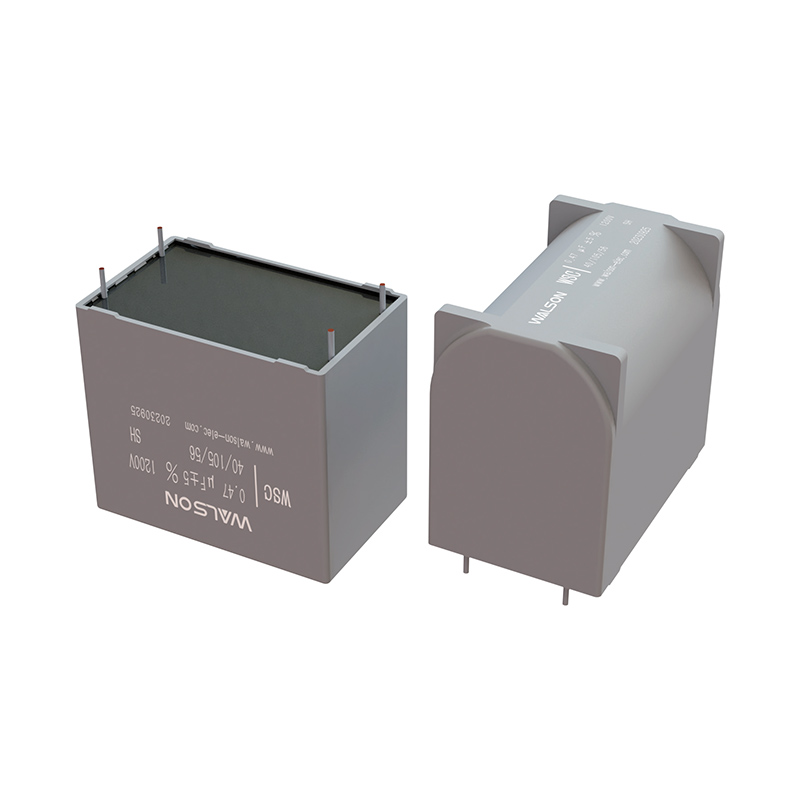

IGBT buffer film capacitor: the "invisible guardian" of power electronics

Nanosecond lightning tamer: How to subdue the 10,000-volt voltage spike?
When the IGBT device switches at a speed of 10,000 times per second, the voltage spike generated is comparable to natural lightning - the steep waveform of 10kV/μs is enough to break through ordinary components. At this moment, the special film capacitor builds the first line of defense with a response speed of <10ns. The nano-aluminum oxide doping layer on the 2.2μm metallized polypropylene film forms an atomic-level barrier, and the edge thickening winding technology increases the withstand voltage by 50%. In the actual measurement of the new energy converter, it successfully suppressed the voltage spike that threatened the system below the safety line, just like putting a rein on the violent current.

Self-healing miracle: When the capacitor has "vital signs"
The monitoring screen of a photovoltaic power station recorded a shocking scene: at the moment of 200% overvoltage breakdown, a tiny arc flashed inside the capacitor, and then the damaged area was automatically isolated - this is the salvation of the self-healing metallized film. The segmented evaporation electrode limits the fault to the millimeter range, and the corrugated contact structure compresses the parasitic inductance to less than 5nH. After the 50kA short-circuit discharge test, the capacity stability is still maintained within ±2%. This wisdom of "sacrificing the local to preserve the overall situation" interprets the ultimate survival philosophy of electronic components.

Extreme environment purgatory: the test from the Sahara to Siberia
In the 85℃/85% humidity simulation cabin, thousands of capacitors are undergoing 1000 hours of wet heat aging; in the minus 40℃ freezer, the copper-tin composite gold spraying layer is subjected to thermal shock cycles. The accelerated life model reveals amazing data: after working continuously for 1000 hours at a high temperature of 105℃, the performance decay is less than 3%. Even more amazing is the voltage inverse power law verification-for every 10% reduction in operating voltage, the life is extended by 8 times. These data have created the confidence of "exemption from inspection" for the converters of offshore wind farms.

Amphibious operations: the cross-border journey of new energy, industry and cutting-edge technology
In the photovoltaic power station on the Qinghai-Tibet Plateau, they guard the inverter DC-Link circuit day and night; in the converter cabin of the North Sea wind farm, they tame the megawatt-level surge current; in the speeding electric car, they build a firewall for the motor controller. When scientists turn their attention to nuclear fusion devices, these capacitors are taking on the pulse buffering task of magnetic confinement power supply - from 15V laptop adapters to 15kV tokamak devices, the mission of protecting current stability has never changed.

Water-cooled armor and explosion-proof genes: dual evolution of safety design
The latest generation of capacitors integrates double-sided water-cooled substrates, and the thermal resistance is reduced to below 0.2K/W, which is equivalent to installing a "liquid cooling radiator" on electronic components. The three-dimensional epoxy potting technology is still sealed after 50g acceleration vibration test. The explosion-proof pressure valve opens and releases pressure within 0.5 milliseconds when the internal arc is generated, and the V0-level flame-retardant shell limits the failure to the millimeter-level space - these innovations reduce the product failure rate to one billionth.

Passport to the future: smart chips and high-temperature warriors
The next generation of samples in the laboratory have been embedded with micro-temperature sensors, which monitor health status in real time like "electronic doctors". The wide bandgap semiconductor adaptation version can work at a high temperature of 200°C, and the high-frequency version supports silicon carbide device switches of >200kHz. The more cutting-edge self-diagnostic capacitor can automatically issue an early warning signal when the performance decays by 10%, raising preventive maintenance to the chip level.

Global Passport: The certification road from the deep seabed to outer space
UL 810 certification witnesses the bravery of 50 short-circuit explosion tests; IEC 61881-1 certificate records the tenacity of 10,000 charging and discharging; AEC-Q200 automotive-grade certification means that it can survive in the engine compartment for 15 years. When DNV-GL ship classification certification and IRIS railway standard seal come together, these small square devices have been approved to enter the containment of nuclear power plants - their reliability is redefining the safety boundaries of power electronics.

At this moment, in the power conversion systems across land, sea and air, these "electronic lightning rods" made of ultra-thin films and nano-coatings are guarding the pulse of clean energy in a way that is difficult for humans to perceive. From the microcurrent of rooftop photovoltaics to the billion amperes of tokamaks, this silent electronic revolution will continue to inject kinetic energy into human civilization.
