Differences Between Electrolytic and Film Capacitors

Capacitors are fundamental components in electronic circuits used for storing electrical energy, consisting of two conductors separated by a dielectric. Among various types, electrolytic and film capacitors are widely used in different applications due to their distinct materials and performance characteristics. Understanding their differences is essential for proper circuit design and component selection.

Electrolytic capacitors use an electrolyte as the cathode material, are polarized—requiring correct polarity during installation—and offer high volumetric efficiency, meaning they provide large capacitance in a small size at a relatively low cost. They are commonly used in power supply filtering, energy storage, and low-frequency coupling applications. However, they also have notable drawbacks: sensitivity to temperature, limited lifespan (typically several years), relatively high leakage current, and reduced reliability over time as the electrolyte may dry out.

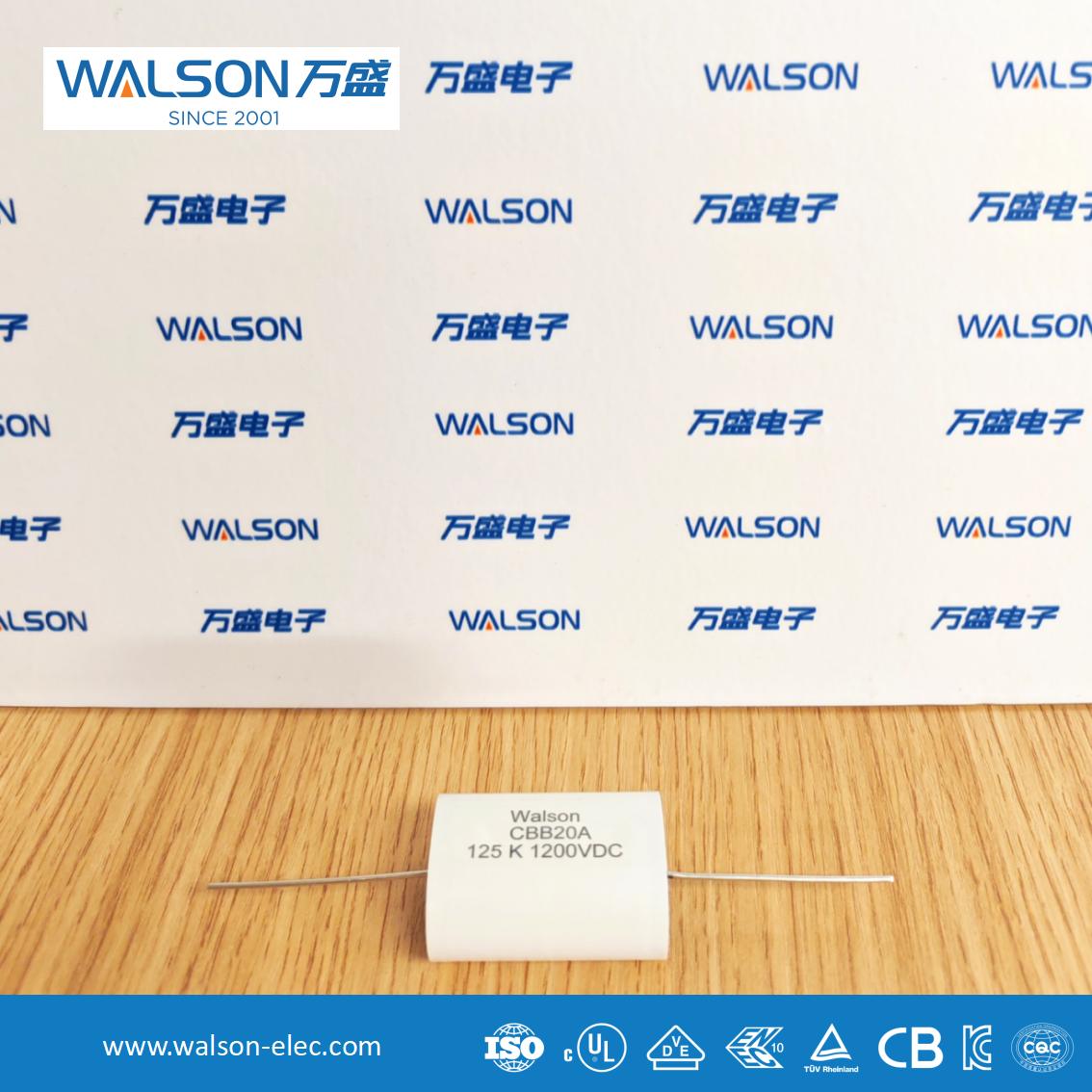

In contrast, film capacitors use plastic films such as polypropylene (PP) or polyester (PET) as the dielectric, are non-polarized, and easier to install. They exhibit low equivalent series resistance (ESR) and low inductance (ESL), high voltage tolerance, frequency characteristics, and are suitable for high-frequency circuits, resonant applications, EMI suppression, and high-reliability scenarios. Additionally, film capacitors offer good temperature stability and a long lifespan, often exceeding ten years. Their disadvantages include larger physical size for comparable capacitance, higher cost, and a more limited capacitance range.

When selecting a capacitor, it is important to consider circuit frequency, operating temperature, expected lifespan, space constraints, and budget. For example, electrolytic capacitors are suitable for low-frequency and high-capacitance applications such as power supplies and audio equipment, while film capacitors are better for high-frequency filtering, motor drives, and situations requiring high stability and reliability.

In summary, electrolytic and film capacitors each have their own strengths and ideal use cases. A clear understanding of their materials, performance, and applications contributes to more rational and reliable circuit design.
