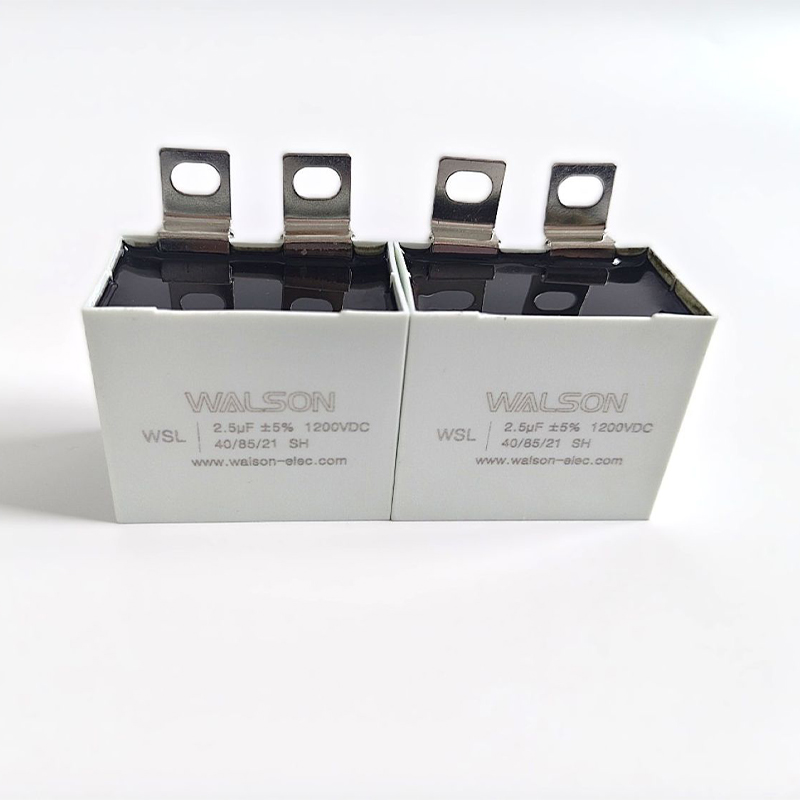

The Role of Vacuum Resin Potting in Film Capacitors

The Role of Vacuum Resin Potting in Film Capacitors

1. Structure and Characteristics of Film Capacitors
   Film capacitors are a common type of capacitor currently available on the market. Their structure consists of metal foil, insulating material, and a conductive outer casing. Inside, a layer of metal foil is installed, with the inter-foil spaces filled with insulating material. Film capacitors feature high precision, high stability, and long-term reliability, and are therefore widely used in electronic components and products.
2. Roles of Vacuum Potting

1.Improving Capacitor Performance
Vacuum potting makes the inter-foil insulating material more compact, thereby enhancing the capacitor's insulation performance, reducing internal dielectric loss and leakage current, and improving its stability and reliability. In addition, vacuum potting eliminates microscopic air bubbles inside the capacitor, preventing air capacitance effects and thus improving precision and overall performance.

2.Protecting the Internal Structure
The internal structure of film capacitors is highly delicate and susceptible to damage from vibration and temperature fluctuations. Vacuum potting forms a protective layer inside the capacitor, which prevents metal foil vibration and abrasion, safeguards the internal structure, and consequently ensures both performance and service life.

3.Extending Service Life Vacuum potting effectively prolongs the service life of film capacitors. On one hand, it enhances durability by improving performance and stability; on the other hand, it prevents structural damage that could otherwise shorten the capacitor's lifespan.

In summary, vacuum potting is a critical process for film capacitors, as it improves performance, protects internal structures, and extends service life. In production, scientifically designed procedures and professional equipment are essential to ensure high potting quality and operational efficiency
