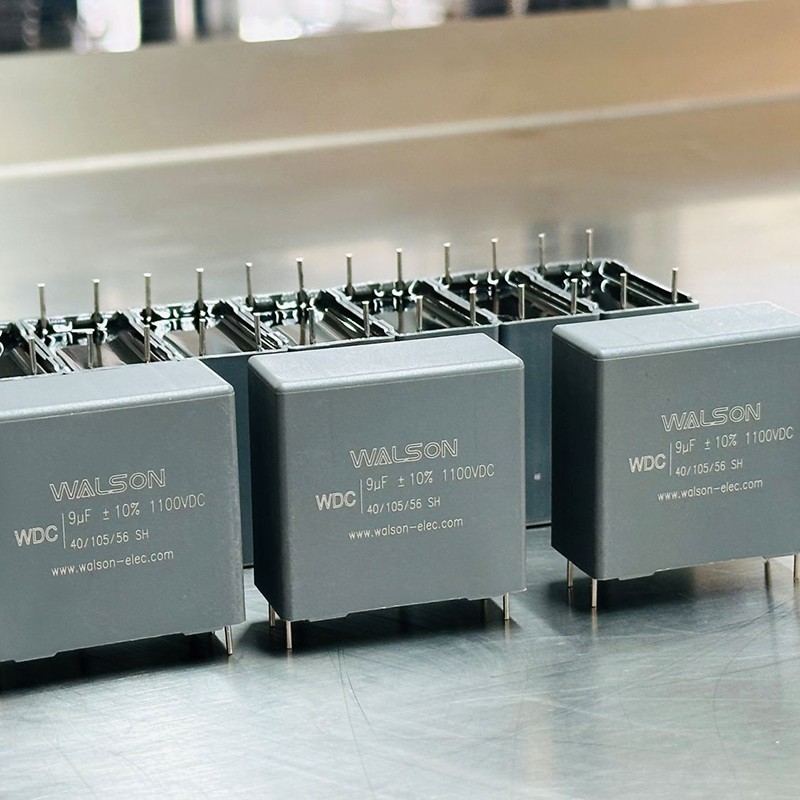

Application and Solutions of Film Capacitors in the EMC Field

As electromagnetic compatibility (EMC) design becomes increasingly critical, film capacitors are emerging as key components for enhancing the

anti-interference capability of electronic equipment, thanks to their electrical properties. Addressing common electromagnetic interference (EMI) issues in power supplies, automotive electronics, and industrial devices, film capacitors offer unique application value.

In high-frequency filtering scenarios, film capacitors feature low equivalent series resistance (ESR) and low equivalent series inductance (ESL), enabling them to effectively absorb voltage spikes and suppress differential mode interference. Compared with aluminum electrolytic capacitors, they provide more stable capacitance over a wide temperature range and long-term reliability. Metallized film capacitors, in particular, also have self-healing characteristics, automatically restoring insulation after overvoltage breakdown to prevent system failure.

To address typical challenges in EMC design, the industry commonly adopts the following solutions: first, connect X2 class safety film capacitors in parallel at the power input to suppress symmetrical interference from the grid; second, use them in combination with common mode chokes at the output of switching power supplies to form efficient filtering networks; third, mount snubber capacitors close to IGBT or MOSFET modules to buffer voltage overshoot caused by high-frequency switching.

With the increasing EMC compliance requirements for electric vehicles, photovoltaic inverters, and energy storage systems, film capacitors are

evolving from passive filtering components to system-level integrated EMC solutions. Manufacturers are launching custom low-ESL structures, surface-mount packages, and long-life, high-temperature-resistant products, helping engineers meet relevant EMI standards with smaller size and lower cost.

In summary, proper selection and layout of film capacitors have become an important technical approach to efficiently solving electromagnetic interference problems and enhancing product competitiveness in the market.
