Film Capacitor Derating and Key Application Specifications

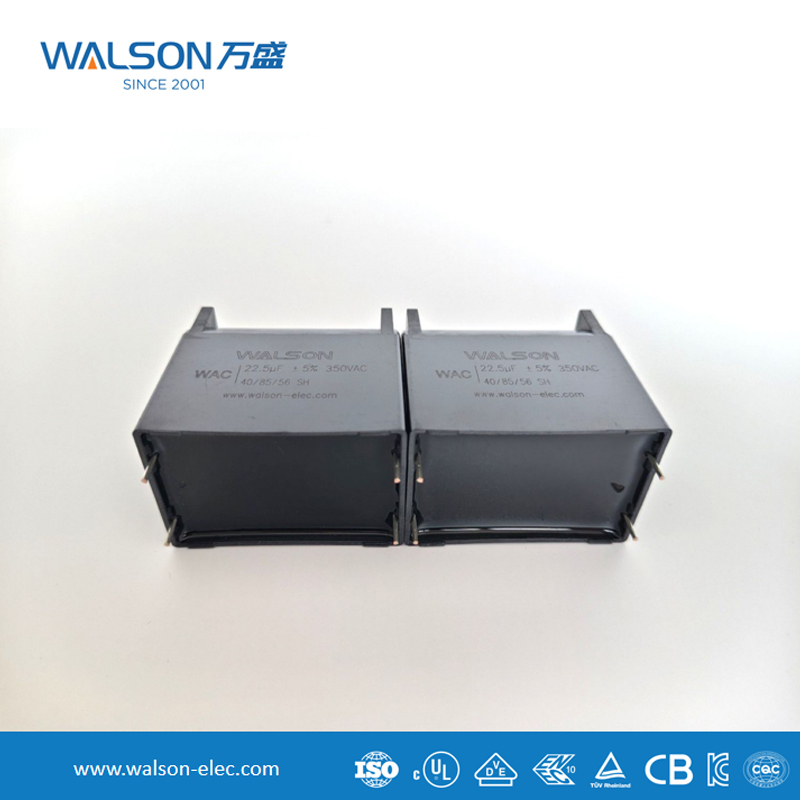

As power electronic systems continue to evolve toward higher power density and greater reliability, film capacitors—as core passive components—have made their derating design and application specifications a focal point of engineering attention. Industry experts point out that scientific derating is the key to extending capacitor lifespan and improving overall system safety margins.

According to the latest application guidelines, film capacitor derating primarily covers three dimensions: voltage, current, and temperature. In terms of voltage derating, DC bus applications typically recommend a 15%–20% margin above the rated voltage, while AC filtering scenarios must consider superimposed peak ripple, where the derating factor should be increased to more than 30%. For current derating, special attention should be paid to the RMS ripple current flowing through the capacitor, as excessive self-heating can accelerate dielectric aging. It is generally recommended to keep current density within 70% of the rated value. For temperature derating, the hot-spot temperature should not exceed 85°C, and every 10°C reduction can double the capacitor's service life.

In terms of key application specifications, designers should pay attention to the following points: First, avoid operating capacitors for extended periods near the resonant frequency region to prevent abnormal oscillations caused by impedance sudden changes. Second, when using multiple capacitors in parallel, strict current-sharing measures must be implemented to prevent individual units from overloading. Third, PCB layout should shorten high-frequency loops to reduce the impact of parasitic inductance on filtering performance. Fourth, for humid or contaminated environments, moisture-resistant coated models should be selected with additional conformal coating treatment.

Several leading equipment manufacturers have already incorporated the above derating specifications into their corporate design baselines and have verified reliability improvements through accelerated life testing. Industry opinion holds that refined derating management does not increase system costs; on the contrary, it significantly reduces total lifecycle maintenance expenditures due to lower failure rates. Looking ahead, as film capacitors find deeper penetration in new energy, rail transit, aerospace, and other fields, the standardization of derating design and application specifications will become an irreversible trend.
