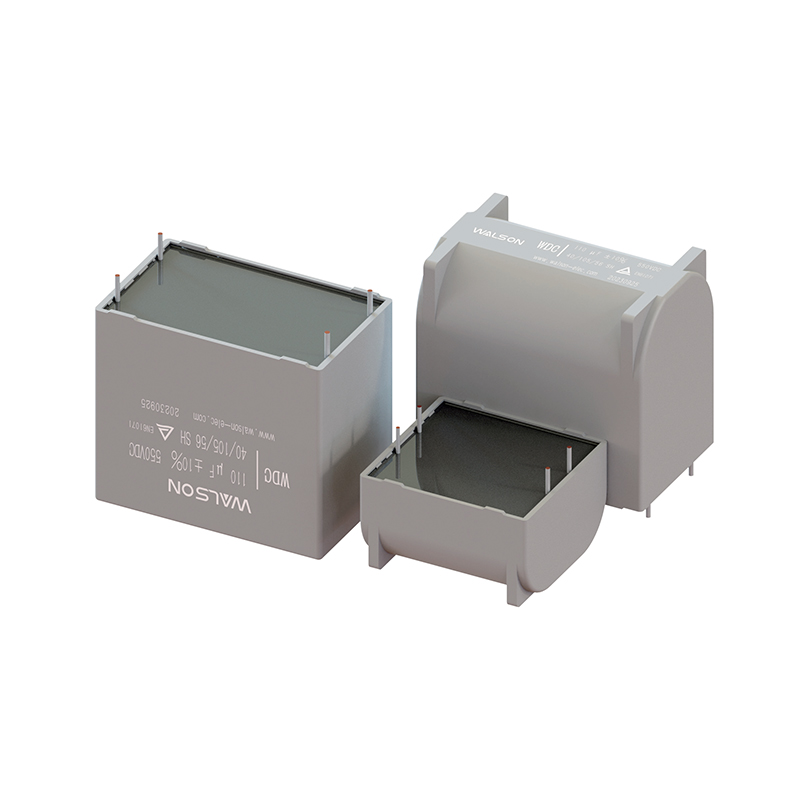

Reference Standard | GB/T 17702 (IEC 61071) |
Operating temperature | -40~105℃ (+85℃to +105℃: decreasing factor 1.35% per ℃ for UN, 85℃) |
Rated Voltage | 500~2000 V.dc |
Capacitance Tolerance | J(±5%), K(±10%) |
Voltage Proof | 1.5UN (10s) |
Self Inductance | <1 nH per mm of lead pitch |
RIns Insulation Resistance | ≥10,000s (20℃, 100V, 1 min) |
tEL Expected Lifetime | 100,000h @ UN, Θhs=70℃ |
Flame Retardation | UL 94V-0 |
CN (μF) |

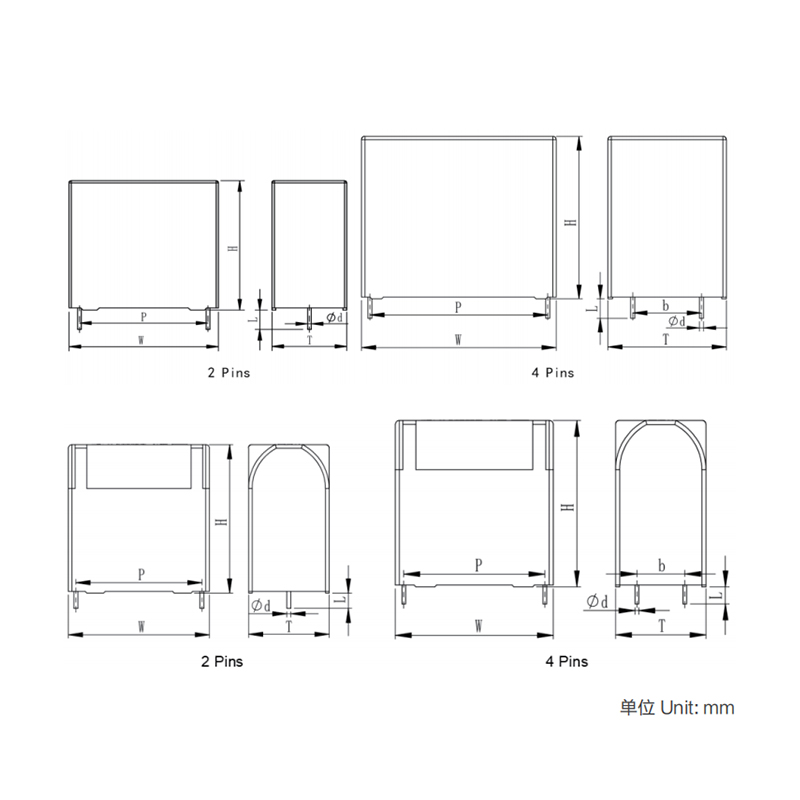

W±1.0 (mm) |
H±1.0 (mm) |
T±1.0 (mm) |
P±0.5 (mm) |
P2(b)±0.5 (mm) |
d (mm) |
dV/dt (V/μ s) |
tan δ(10-4) | RESR @10kHz (mΩ) |
lmax (A) |
||
1KH2 | 10KHz | |||||||||||
UN85°C=500Vdc | 5 | 32 | 20 | 11 | 27.5 | 0.8 | 65 | 10 | 100 | 8.5 | 5 | |
10 | 32 | 28 | 14 | 27.5 | 0.8 | 65 | 10 | 100 | 7.5 | 6.5 | ||
22 | 32 | 37 | 22 | 27.5 | 0.8 | 65 | 10 | 100 | 5 | 10 | ||
30 | 42 | 40 | 20 | 37.5 | 10.2 | 1 | 30 | 15 | 150 | 8 | 12.5 | |
35 | 42 | 37 | 22 | 37.5 | 10.2 | 1 | 30 | 15 | 150 | 8 | 13.5 | |
40 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 30 | 15 | 150 | 5 | 14.5 | |
50 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 30 | 15 | 150 | 4 | 16 | |
60 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 30 | 15 | 150 | 3 | 16.5 | |
75 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 35 | 350 | 5.5 | 16 | |
80 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 35 | 350 | 5 | 16.5 | |
100 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 35 | 350 | 4 | 18 | |
110 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 35 | 350 | 4 | 19 | |
UN85°C=600Vdc | 2 | 32 | 18 | 9 | 27.5 | 0.8 | 65 | 11 | 100 | 47.8 | 2.8 | |
3 | 32 | 20 | 11 | 27.5 | 0.8 | 65 | 11 | 100 | 31.8 | 4.1 | ||
4 | 32 | 20 | 11 | 27.5 | 0.8 | 65 | 11 | 100 | 23.9 | 5.5 | ||
5 | 32 | 22 | 13 | 27.5 | 0.8 | 65 | 11 | 100 | 19.1 | 6.9 | ||
6 | 32 | 25 | 14 | 27.5 | 0.8 | 65 | 11 | 100 | 18.6 | 7.1 | ||
7 | 32 | 28 | 14 | 27.5 | 0.8 | 65 | 11 | 100 | 15.9 | 8.3 | ||
8 | 32 | 28 | 14 | 27.5 | 0.8 | 65 | 11 | 100 | 139 | 9.5 | ||
9 | 32 | 28 | 18 | 27.5 | 0.8 | 65 | 11 | 100 | 12.4 | 10.7 | ||
10 | 32 | 30 | 16 | 27.5 | 0.8 | 65 | 11 | 100 | 11.1 | 11 | ||
10 | 32 | 30 | 18 | 27.5 | 0.8 | 65 | 11 | 100 | 11.1 | 11 | ||
12 | 32 | 33 | 18 | 27.5 | 0.8 | 65 | 11 | 100 | 10.8 | 12 | ||
15 | 32 | 37 | 22 | 27.5 | 0.8 | 65 | 11 | 100 | 9 | 12 | ||
15 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 65 | 11 | 100 | 7.4 | 16.5 | |
18 | 32 | 37 | 22 | 27.5 | 0.8 | 65 | 11 | 100 | 8 | 12 | ||
18 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 65 | 11 | 100 | 6.2 | 17 | |
10 | 41.5 | 30 | 16 | 37.5 | 1 | 30 | 20 | 175 | 19.5 | 6.2 | ||
12 | 41.5 | 30 | 16 | 37.5 | 1 | 30 | 20 | 175 | 16.3 | 7.4 | ||
15 | 41.5 | 34 | 19 | 37.5 | 1 | 30 | 20 | 175 | 13 | 9.2 | ||
20 | 42 | 40 | 20 | 37.5 | 10.2 | 1 | 30 | 20 | 175 | 9.8 | 12.3 | |
22 | 42 | 40 | 20 | 37.5 | 10.2 | 1 | 30 | 20 | 175 | 8.9 | 13.5 | |
25 | 42 | 40 | 20 | 37.5 | 10.2 | 1 | 30 | 20 | 175 | 7.8 | 15.4 | |
30 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 30 | 20 | 175 | 6.8 | 17.5 | |
35 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 6 | 20.1 | |
40 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 5.2 | 23 | |
45 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 4.6 | 25.8 | |
50 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 4.2 | 28.7 | |
55 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 3.8 | 31.6 | |
60 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 3.5 | 34.5 | |
65 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 3.2 | 35 | |
70 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 3 | 35 | |
75 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 2.8 | 35 | |
80 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 2.6 | 35 | |
85 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 30 | 20 | 175 | 2.5 | 35 | |
55 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 7.1 | 16.9 | |
60 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 6.5 | 18.5 | |
65 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 6 | 20 | |
70 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 5.6 | 21.5 | |
75 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 5.2 | 23.1 | |
80 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 4.9 | 24.6 | |
85 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 4.8 | 25.1 | |
90 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 4.6 | 25.8 | |
95 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 4.4 | 27.3 | |
100 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 4.2 | 28.7 | |
110 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 3.8 | 31.6 | |
110 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 3.8 | 31.6 | |
120 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 3.5 | 34.5 | |
130 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 3.2 | 35 | |
140 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 15 | 36 | 350 | 3 | 35 | |
UN85°C=800Vdc | 2 | 32 | 18 | 9 | 27.5 | 0.8 | 65 | 10 | 95 | 45.4 | 2.9 | |
3 | 32 | 20 | 11 | 27.5 | 0.8 | 65 | 10 | 95 | 30.3 | 4.4 | ||
3.3 | 32 | 22 | 13 | 27.5 | 0.8 | 65 | 10 | 95 | 18.8 | 7 | ||
4 | 32 | 28 | 14 | 27.5 | 0.8 | 65 | 10 | 95 | 22.7 | 5.8 | ||
5 | 32 | 28 | 14 | 27.5 | 0.8 | 65 | 10 | 95 | 18.2 | 7.3 | ||
6 | 32 | 30 | 18 | 27.5 | 0.8 | 65 | 10 | 95 | 15.1 | 8.7 | ||
7 | 32 | 30 | 18 | 27.5 | 0.8 | 65 | 10 | 95 | 13 | 10.2 | ||
8 | 32 | 33 | 18 | 27.5 | 0.8 | 65 | 10 | 95 | 12.5 | 10.5 | ||
9 | 32 | 33 | 18 | 27.5 | 0.8 | 65 | 10 | 95 | 11.1 | 11.8 | ||
10 | 32 | 37 | 22 | 27.5 | 0.8 | 65 | 10 | 95 | 11 | 12 | ||
10 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 65 | 10 | 95 | 9.1 | 14.5 | |
11 | 32 | 37 | 22 | 27.5 | 0.8 | 65 | 10 | 95 | 10 | 12 | ||
11 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 65 | 10 | 95 | 8.3 | 16 | |
12 | 32 | 37 | 22 | 27.5 | 0.8 | 65 | 10 | 95 | 9.3 | 12 | ||
12 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 65 | 10 | 95 | 7.6 | 16 | |
13 | 32 | 37 | 22 | 27.5 | 0.8 | 30 | 10 | 95 | 8.8 | 12 | ||
13 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 30 | 10 | 95 | 8.1 | 16.2 | |
14 | 32 | 37 | 22 | 27.5 | 0.8 | 30 | 10 | 95 | 8.2 | 12 | ||
14 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 30 | 10 | 95 | 7.6 | 16.5 | |
8 | 41.5 | 30 | 16 | 37.5 | 1 | 30 | 18 | 160 | 22.3 | 5.4 | ||
9 | 41.5 | 30 | 16 | 37.5 | 1 | 30 | 18 | 160 | 19.8 | 6.1 | ||
10 | 41.5 | 34 | 19 | 37.5 | 1 | 30 | 18 | 160 | 17.8 | 6.7 | ||
12 | 41.5 | 34 | 19 | 37.5 | 1 | 30 | 18 | 160 | 14.9 | 8.1 | ||
15 | 42 | 40 | 20 | 37.5 | 10.2 | 1 | 30 | 18 | 160 | 11.9 | 10.1 | |
20 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 30 | 18 | 160 | 8.9 | 13.5 | |
25 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 30 | 18 | 160 | 7.1 | 16.8 | |
30 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 30 | 18 | 160 | 5.9 | 20.2 | |
35 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 30 | 18 | 160 | 5.5 | 22 | |
40 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 30 | 18 | 160 | 4.8 | 25.1 | |
45 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 30 | 18 | 160 | 4.2 | 28.3 | |
50 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 30 | 18 | 160 | 3.8 | 31.4 | |
55 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 15 | 18 | 160 | 3.5 | 34.5 | |
60 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 15 | 18 | 160 | 3.2 | 35 | |
65 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 15 | 18 | 160 | 2.9 | 35 | |
40 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 8.9 | 13.5 | |
45 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 7.9 | 15.1 | |
50 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 7.1 | 16.8 | |
55 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 6.5 | 18.5 | |
60 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 5.9 | 20.2 | |
65 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 5.5 | 21.9 | |
70 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 5.1 | 23.6 | |
75 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 4.8 | 25.2 | |
80 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 4.6 | 25.9 | |
85 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 4.5 | 26.7 | |
90 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 4.2 | 28.3 | |
95 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 4 | 29.8 | |
100 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 3.8 | 31.4 | |
110 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 15 | 33 | 320 | 3.5 | 34.5 | |
UN85°C=900Vdc | 1 | 32 | 18 | 9 | 27.5 | 0.8 | 70 | 9 | 90 | 45.4 | 2.9 | |
2 | 32 | 20 | 11 | 27.5 | 0.8 | 70 | 9 | 90 | 30.3 | 4.4 | ||
3 | 32 | 22 | 13 | 27.5 | 0.8 | 70 | 9 | 90 | 18.8 | 7 | ||
4 | 32 | 28 | 14 | 27.5 | 0.8 | 70 | 9 | 90 | 22.7 | 5.8 | ||
5 | 32 | 28 | 18 | 27.5 | 0.8 | 70 | 9 | 90 | 18.2 | 7.3 | ||
6 | 32 | 33 | 18 | 27.5 | 0.8 | 70 | 9 | 90 | 15.1 | 8.7 | ||
7 | 32 | 33 | 18 | 27.5 | 0.8 | 70 | 9 | 90 | 13 | 10.2 | ||
8 | 32 | 37 | 22 | 27.5 | 0.8 | 70 | 9 | 90 | 12.5 | 10.5 | ||
8 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 70 | 9 | 90 | 11.1 | 11.8 | |
9 | 32 | 37 | 22 | 27.5 | 0.8 | 70 | 9 | 90 | 11 | 12 | ||
9 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 70 | 9 | 90 | 9.1 | 14.5 | |
10 | 32 | 37 | 22 | 27.5 | 0.8 | 70 | 9 | 90 | 10 | 12 | ||
10 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 70 | 9 | 90 | 8.3 | 16 | |
4.7 | 41.5 | 30 | 16 | 27.5 | 1 | 70 | 17 | 150 | 9.3 | 12 | ||
5 | 41.5 | 30 | 16 | 27.5 | 10.2 | 1 | 70 | 17 | 150 | 7.6 | 16 | |
6 | 41.5 | 30 | 16 | 27.5 | 1 | 70 | 17 | 150 | 8.8 | 12 | ||
7 | 41.5 | 30 | 16 | 27.5 | 10.2 | 1 | 70 | 17 | 150 | 8.1 | 16.2 | |
8 | 41 | 34 | 19 | 27.5 | 1 | 70 | 17 | 150 | 8.2 | 12 | ||
10 | 42 | 40 | 20 | 27.5 | 10.2 | 1 | 70 | 17 | 150 | 7.6 | 16.5 | |
12 | 42 | 37 | 22 | 37.5 | 10.2 | 1 | 35 | 17 | 150 | 22.3 | 5.4 | |
15 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 35 | 17 | 150 | 19.8 | 6.1 | |
18 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 35 | 17 | 150 | 17.8 | 6.7 | |
20 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 35 | 17 | 150 | 14.9 | 8.1 | |
25 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 35 | 17 | 150 | 8.9 | 13.5 | |
30 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 35 | 17 | 150 | 7.1 | 16.8 | |
35 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 35 | 17 | 150 | 5.9 | 20.2 | |
40 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 35 | 17 | 150 | 5.5 | 22 | |
45 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 35 | 17 | 150 | 4.8 | 25.1 | |
50 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 35 | 17 | 150 | 4.2 | 28.3 | |
30 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 31 | 300 | 8.9 | 13.5 | |
35 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 15 | 31 | 300 | 7.1 | 16.8 | |
40 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 15 | 31 | 300 | 6.5 | 18.5 | |
UN85°C=1000Vd | 1 | 32 | 18 | 9 | 27.5 | 0.8 | 75 | 8 | 80 | 76.4 | 1.7 | |
2 | 32 | 22 | 13 | 27.5 | 0.8 | 75 | 8 | 80 | 38.2 | 3.5 | ||
3 | 32 | 28 | 14 | 27.5 | 0.8 | 75 | 8 | 80 | 25.5 | 5.2 | ||
4 | 32 | 30 | 18 | 27.5 | 0.8 | 75 | 8 | 80 | 19.1 | 6.9 | ||
5 | 32 | 33 | 18 | 27.5 | 0.8 | 75 | 8 | 80 | 15.3 | 8.6 | ||
6 | 32 | 33 | 18 | 27.5 | 0.8 | 75 | 8 | 80 | 14.9 | 8.9 | ||
7 | 32 | 37 | 22 | 27.5 | 0.8 | 75 | 8 | 80 | 14.5 | 9.4 | ||
7 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 75 | 8 | 80 | 11.4 | 11.6 | |
8 | 32 | 37 | 22 | 27.5 | 0.8 | 75 | 8 | 80 | 13 | 10.8 | ||
8 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 75 | 8 | 80 | 10 | 13.3 | |
5 | 41.5 | 30 | 16 | 27.5 | 1 | 75 | 8 | 80 | 31.2 | 3.8 | ||
6 | 41.5 | 30 | 16 | 27.5 | 1 | 75 | 8 | 80 | 26 | 4.6 | ||
7 | 41.5 | 35 | 19 | 27.5 | 1 | 75 | 8 | 80 | 22.3 | 5.4 | ||
8 | 41.5 | 34 | 19 | 37.5 | 1 | 37 | 15 | 140 | 19.5 | 6.2 | ||
10 | 42 | 40 | 20 | 37.5 | 1 | 37 | 15 | 140 | 15.6 | 6.7 | ||
10 | 42 | 40 | 20 | 37.5 | 10.2 | 1 | 37 | 15 | 140 | 15.6 | 7.7 | |
12 | 42 | 37 | 22 | 37.5 | 1 | 37 | 15 | 140 | 13 | 9.2 | ||
12 | 42 | 37 | 22 | 37.5 | 10.2 | 1 | 37 | 15 | 140 | 15 | 8 | |
15 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 37 | 15 | 140 | 10.4 | 11.5 | |
18 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 37 | 15 | 140 | 8.7 | 13.8 | |
20 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 37 | 15 | 140 | 7.8 | 15.4 | |
25 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 37 | 15 | 140 | 6.2 | 19.2 | |
30 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 37 | 15 | 140 | 5.2 | 23.1 | |
35 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 37 | 15 | 140 | 4.8 | 25.1 | |
40 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 37 | 15 | 140 | 4.2 | 28.7 | |
25 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 12.5 | 9.6 | |
30 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 10.4 | 11.5 | |
35 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 8.9 | 13.5 | |
40 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 7.8 | 15.4 | |
45 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 6.9 | 17.3 | |
50 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 6.2 | 19.2 | |
55 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 5.7 | 21.1 | |
60 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 5.2 | 23.1 | |
65 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 4.8 | 25 | |
70 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 17 | 28 | 280 | 4.5 | 26.9 | |
UN85°C=1100Vd | 0.68 | 32 | 20 | 11 | 27.5 | 0.8 | 80 | 8 | 70 | 80 | 1.7 | |
1 | 32 | 20 | 11 | 27.5 | 0.8 | 80 | 8 | 70 | 59.4 | 2.2 | ||
1.5 | 32 | 22 | 13 | 27.5 | 0.8 | 80 | 8 | 70 | 55.7 | 2.4 | ||
2 | 32 | 25 | 14 | 27.5 | 0.8 | 80 | 8 | 70 | 27.9 | 4.7 | ||
3 | 32 | 30 | 18 | 27.5 | 0.8 | 80 | 8 | 70 | 20.4 | 6.5 | ||
4 | 32 | 33 | 18 | 27.5 | 0.8 | 80 | 8 | 70 | 15.3 | 8.6 | ||
5 | 32 | 37 | 22 | 27.5 | 0.8 | 80 | 8 | 70 | 14 | 9.8 | ||
5 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 80 | 8 | 70 | 12.3 | 10.8 | |
6 | 32 | 37 | 22 | 27.5 | 0.8 | 80 | 8 | 70 | 12.3 | 10.8 | ||
6 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 80 | 8 | 70 | 10.2 | 12.9 | |
3 | 41.5 | 30 | 16 | 37.5 | 1 | 40 | 15 | 130 | 48.3 | 2.5 | ||
4 | 41.5 | 30 | 16 | 37.5 | 1 | 40 | 15 | 130 | 36.2 | 3.3 | ||
4.7 | 41.5 | 34 | 19 | 37.5 | 1 | 40 | 15 | 130 | 30.8 | 3.9 | ||
5 | 41.5 | 34 | 19 | 37.5 | 1 | 40 | 15 | 130 | 29 | 4.1 | ||
6 | 41.5 | 34 | 19 | 37.5 | 1 | 40 | 15 | 130 | 24.2 | 5 | ||
7 | 42 | 40 | 20 | 37.5 | 10.2 | 1 | 40 | 15 | 130 | 20.7 | 5.8 | |
8 | 42 | 37 | 22 | 37.5 | 10.2 | 1 | 40 | 15 | 130 | 18.1 | 6.6 | |
9 | 42 | 37 | 22 | 37.5 | 10.2 | 1 | 40 | 15 | 130 | 16.1 | 7.5 | |
10 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 40 | 15 | 130 | 14.5 | 8.3 | |
12 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 40 | 15 | 130 | 12.1 | 9.9 | |
15 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 40 | 15 | 130 | 9.7 | 12.4 | |
18 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 40 | 15 | 130 | 8.1 | 14.9 | |
20 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 40 | 15 | 130 | 7.2 | 16.6 | |
25 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 40 | 15 | 130 | 5.8 | 20.7 | |
30 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 40 | 15 | 130 | 4.8 | 24.8 | |
20 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 14.5 | 8.3 | |
25 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 11.6 | 10.4 | |
30 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 9.7 | 12.4 | |
35 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 8.4 | 14.3 | |
40 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 7.8 | 15.5 | |
45 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 6.9 | 17.4 | |
50 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 6.2 | 19.3 | |
55 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 20 | 27 | 260 | 5.6 | 21.3 | |
UN85°C=1200Vd | 1 | 32 | 20 | 11 | 27.5 | 0.8 | 90 | 7 | 55 | 39.5 | 3.5 | |
2 | 32 | 28 | 14 | 27.5 | 0.8 | 90 | 7 | 55 | 26.3 | 5 | ||
3 | 32 | 30 | 18 | 27.5 | 0.8 | 90 | 7 | 55 | 17.5 | 7.5 | ||
4 | 32 | 33 | 18 | 27.5 | 0.8 | 90 | 7 | 55 | 13.9 | 9.5 | ||
5 | 32 | 37 | 22 | 27.5 | 0.8 | 90 | 7 | 55 | 12.7 | 10.4 | ||
5 | 32 | 37 | 22 | 27.5 | 10.2 | 0.8 | 90 | 7 | 55 | 11.1 | 11.8 | |
3 | 41.5 | 30 | 16 | 37.5 | 1 | 45 | 13 | 100 | 37.2 | 3.2 | ||
4 | 41.5 | 30 | 16 | 37.5 | 1 | 45 | 13 | 100 | 27.9 | 4.3 | ||
5 | 41.5 | 34 | 19 | 37.5 | 1 | 45 | 13 | 100 | 22.3 | 5.4 | ||
6 | 42 | 40 | 20 | 37.5 | 1 | 45 | 13 | 100 | 18.6 | 6.5 | ||
7 | 42 | 37 | 22 | 37.5 | 10.2 | 1 | 45 | 13 | 100 | 15.9 | 7.5 | |
8 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 45 | 13 | 100 | 13.9 | 8.6 | |
9 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 45 | 13 | 100 | 12.4 | 9.7 | |
10 | 42 | 44 | 24 | 37.5 | 10.2 | 1 | 45 | 13 | 100 | 11.1 | 10.8 | |
12 | 42 | 45 | 30 | 37.5 | 20.3 | 1.2 | 45 | 13 | 100 | 9.3 | 12.9 | |
15 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 45 | 13 | 100 | 7.4 | 16.1 | |
18 | 42 | 50 | 35 | 37.5 | 20.3 | 1.2 | 45 | 13 | 100 | 6.6 | 18.1 | |
20 | 42 | 55 | 40 | 37.5 | 20.3 | 1.2 | 45 | 13 | 100 | 6 | 20.1 | |
25 | 42 | 60 | 45 | 37.5 | 20.3 | 1.2 | 45 | 13 | 100 | 4.8 | 25.1 | |
15 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 23 | 24 | 200 | 15.9 | 7.5 | |
20 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 23 | 24 | 200 | 11.9 | 10 | |
25 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 23 | 24 | 200 | 9.6 | 12.6 | |
30 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 23 | 24 | 200 | 8 | 15.1 | |
35 | 57.5 | 55 | 45 | 52.5 | 20.3 | 1.2 | 23 | 24 | 200 | 6.8 | 17.6 | |
40 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 23 | 24 | 200 | 6 | 20.1 | |
45 | 57.5 | 65 | 45 | 52.5 | 20.3 | 1.2 | 23 | 24 | 200 | 5.3 | 22.6 |
We will reply to you within 12 hours of the working day.
We have a self-owned factory, we also have our own international sales department. We produce and sell all by ourselves.
We focus on film capacitors.
Our products are used in a wide range of applications, including household appliances, power supplies, electricity meters, lighting, welding machines, rail transit, electric vehicles, power grids, UPS/EPS, medical equipment, photovoltaic inverters, wind power converters, and more.
Yes, we are experts in doing customized products according to the customers’ drawings or samples.
Walson Electronics was established in 2001, with more than 20 years of experience in R&D, manufacturing, sale and service of film capacitors. Custom WDC series DC-Link Capacitor for PCB Manufacturers and WDC series DC-Link Capacitor for PCB Factory
We always adhere to the cooperation of advanced automation and industrialization. the company continues to introduce domestic and foreign outstanding production equipment, while self-developed production management software, enterprise collaborative management to scientific and efficient operation, has achieved 1 billion/annual production capacity breakthrough, and maintains an orderly rise.
Walson Electronics products have covered more industries, including new energy and power industry, Photovoltaic inverters, LED lighting, household appliances and various power sources and other industries.
Adhering to the concept of innovative technology, honest service and professional quality, Walson Electronics pushes forward capacitor products continuously and is sure to become the industry pioneer with innovative advantages.
Features: Better electric property, high reliability Epoxy r... View More
Features: Better electric property, high reliability Epoxy r... View More
Features: Better electric property, high reliability Epoxy r... View More
Features: Double-sided metalized construction,self-healing p... View More
Features: Double-sided metallized electrode, polypropylene f... View More
Features: Metalized polyester film, stacked construction Pla... View More
Features: Film/foil, non-inductive wound type, dipped Outsta... View More
Features: FR-4 epoxy tube cylinder shell, dry type, and has ... View More
In the vast landscape of electronic components, selecting the right capacitor can often fe...
READ MOREIn the world of electronics, where precision and reliability are paramount, selecting the ...
READ MOREIn the vast world of electronic components, finding the right capacitor can often be a dau...
READ MOREAre you looking for a high-quality DC-link capacitor for your PCB? If so, you need to chec...
READ MOREWalson Electronics extend our warmest wishes to everyone for a joyous National Day!
READ MORECopyright © Wuxi Walson Electronics Co., Ltd.  Custom WDC series DC-Link Capacitor for PCB Manufacturers
