WDV series DC-Link Capacitor for EV Manufacturers

Home / Products / Film Capacitor / DC Link Capacitor / WDV series DC-Link Capacitor for EV
Recommended products
CALL OUR OFFICE

+86 - 138 1203 1188

E-MAIL

[email protected] / [email protected]

WDV series DC-Link Capacitor for EV WDV series DC-Link Capacitor for EV
  • WDV series DC-Link Capacitor for EV
  • WDV series DC-Link Capacitor for EV

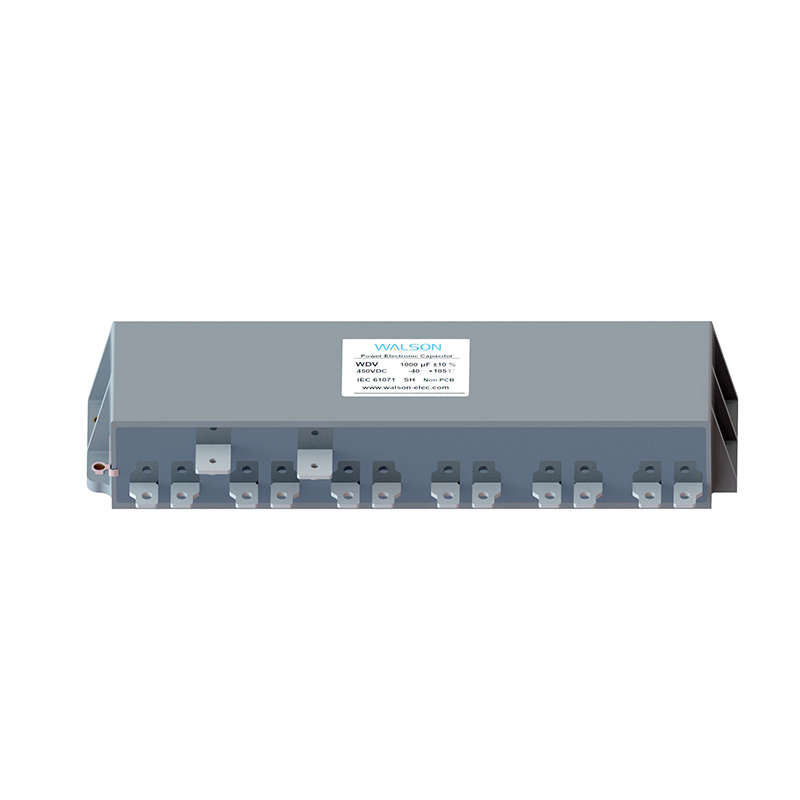

WDV series DC-Link Capacitor for EV

Features:
Special structure material design, self-healing, low loss angle, low equivalent series resistance, low temperature rise
Stack-type bus leads to low inductance, are widely used in the IGBT style, direct mounting
High temperature and high injection plastic perfusion, can long life work in high temperature and high humidity complex application environment
Contact Us PDF Download

Share:

PREV：No previous articleNEXT：WDB series Dry Type DC-Link Capacitor for Ppower Electronics (Steel Case)
Typical Applications:
Provide solutions for new energy vehicle HEV/EV electric drive controllers of different power levels
Widely used in DC-Link circuits for filtering energy storage

Specifications

Implemented Standard IEC 61071 AEC-Q200D
Climatic Category 40/105/56
Rated Voltage 200V.DC~1200V.DC
Capacitance Range 200μF～2000μF
Electric Drive Power Range 10kW~160kW
Capacitance Tolerance ±5%（J），±10%（K）
Voltage Test Between Terminals 1.5Un（VDC）/10s
Voltage test between terminals and case 3000V.AC/50Hz，10s
Insulation resistance ≥10000 s（100V，1min，20℃）

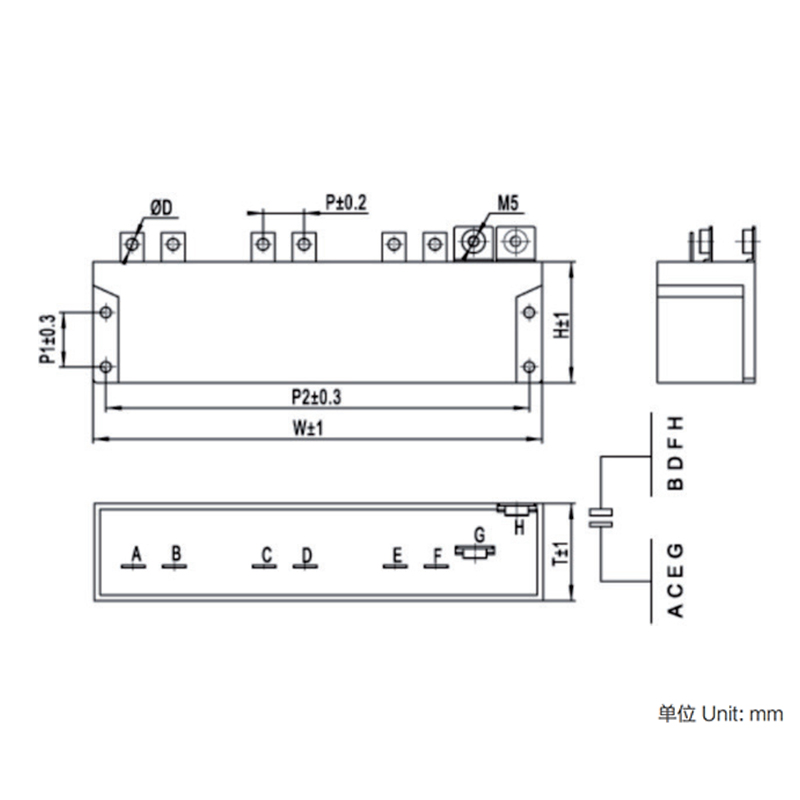

Dimensions(mm)

Click to view
