WAB series Dry Type AC Filter Capacitor for Power Electronics (Steel Case) Manufacturers

Home / Products / Film Capacitor / AC Filter Capacitor / WAB series Dry Type AC Filter Capacitor for Power Electronics (Steel Case)

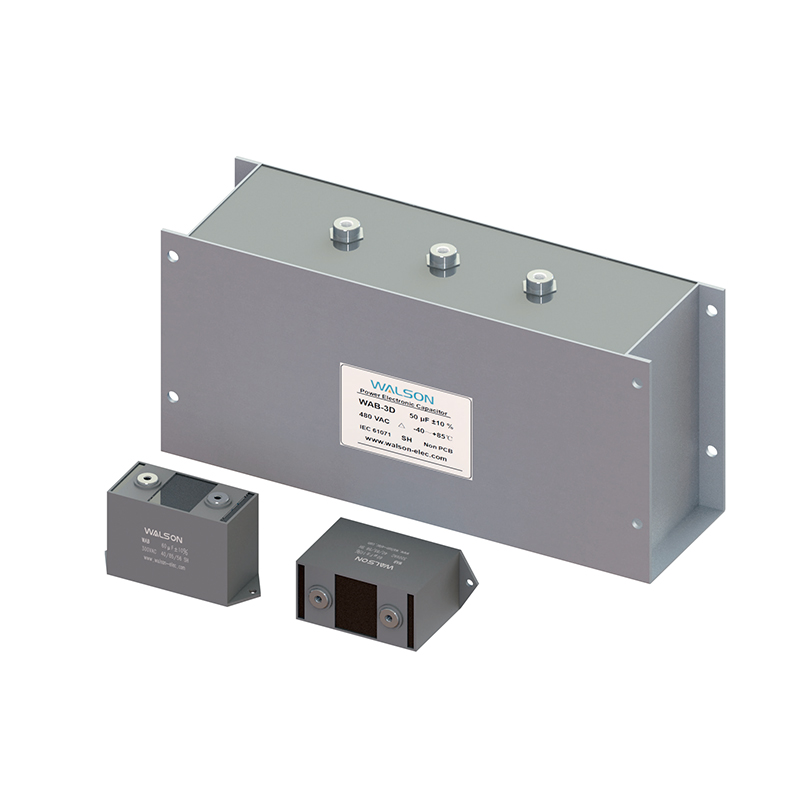

WAB series Dry Type AC Filter Capacitor for Power Electronics (Steel Case) WAB series Dry Type AC Filter Capacitor for Power Electronics (Steel Case)

WAB series Dry Type AC Filter Capacitor for Power Electronics (Steel Case)

Features:
Metal or plastic enclosure package, filled with high-temperature and high heat-conductive material
Copper nut or screw bolt lead out, installation is simple and convenient
High capacitance, small size, high-pressure level, self-healing
Large ripple current, DV/DT bearing capacity
Typical Applications:
Widely used in power electronic equipment used for the AC filter
In the high-power UPS, switching power supply, inverter, and other equipment for the AC filter, harmonics control and improved power factor

Specifications

Implemented Standard GB/T 17702、IEC 61071
Climatic Category 40/85/56
Rated Voltage 400V.DC~1200V.DC
Capacitance Range 3×20~3×500μF / 50~1500μF
Capacitance Tolerance ±5%(J),±10%(K)
Voltage Test Between Terminals 2.15Un(VAC)/10S
Voltage test between terminals and case 1000+2×Un/√2V.AC 60S
Insulation resistance ≥10000 s(100 V,1 min,20 ℃)
Discharge Resistance Discharge to 75V or below within 3 minutes

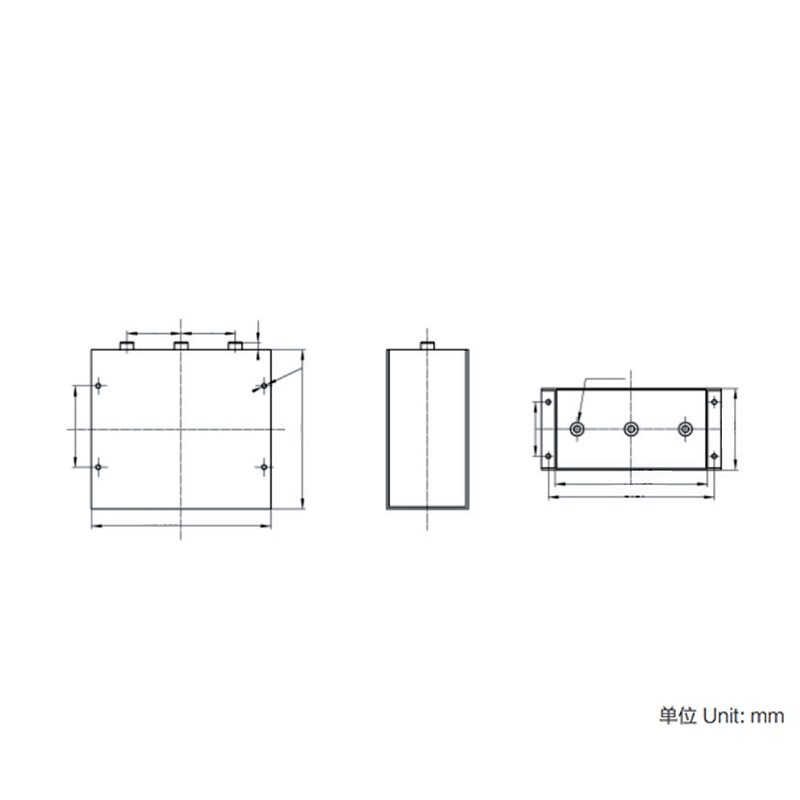

Dimensions(mm)

CN

(uF)

Dimension (mm)

ESL

(nH)

ESR

(mΩ)

DV/DT

(VIμs)

 lpk(A)

Imax

(A)

Rth

(K/W)

W

T

H

P

Un 400~450V.AC

3×200

225

120

170

80

62

2

50

10000

3×70

1.11

3×300

225

120

235

80

78

1.85

40

12000

3×85

0.86

3×400

295

120

235

80

80

1.5

35

14000

3×120

0.71

3×500

365

120

235

80

85

1

30

15000

3×140

0.6

Un 500V.AC

3×120

225

120

170

80

62

2.5

60

7200

3×50

1.12

3×180

225

120

235

80

78

2.2

50

9000

3×70

0.86

3×240

295

120

235

80

80

1.9

45

10800

3×100

0.71

3×300

365

120

235

80

85

1.8

40

12000

3×120

0.6

Un 690V.AC

3×50

225

120

170

80

62

5

100

5000

3×50

1.11

3×75

225

120

235

80

78

3.5

90

6750

3×70

0.86

3×100

295

120

235

80

80

2.5

80

8000

3×100

0.71

3×125

365

120

235

80

85

2.3

80

10000

3×120

0.6

Un 1140V.AC

3×42

340

175

200

80

71

5

120

5040

3×80

0.61

3×60

420

120

25

80

88

1.85

100

6000

3×100

0.53
