CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature) Manufacturers

Home / Products / Film Capacitor / Polypropylene Capacitor / CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature)
Recommended products
CALL OUR OFFICE

+86 - 138 1203 1188

E-MAIL

[email protected] / [email protected]

CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature) CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature)
  • CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature)
  • CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature)

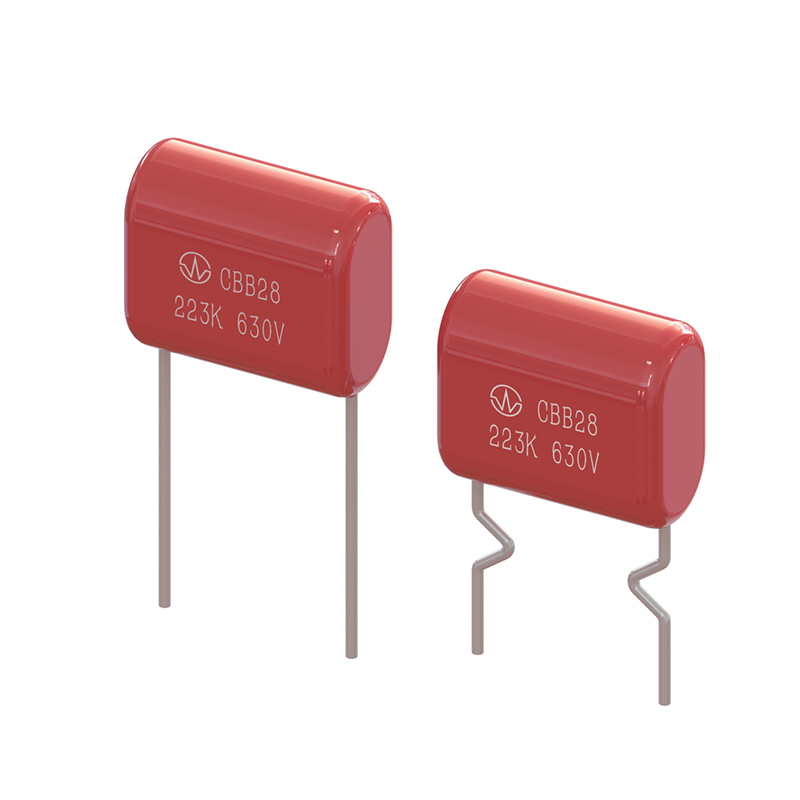

CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature)

Features:
Metalized polypropylene film/ foil, wound construction
Low loss and small inherent temperature rise
Negative temperature coefficient of capacitance
Flame retardant epoxy resin powder coating (UL94/V-0)
Contact Us PDF Download

Share:

PREV：CBB20 series Metallized Polypropylene Film Capacitor (Axial-Type)NEXT：CBB81 series High-Voltage Metallized Polypropylene Film/Foil Capacitor
Typical Applications:
Horizontal resonance circuits of large screen monitor
Suitable for high pulse and high current loading circuit
Suitable for electronic ballast

Specifications

Reference Standard

GB/T 10190(IEC60384-16)

Clmatic Category

40/105/21

Rated Temperature

85℃

Operating Temperature Range

-40℃-105℃

Rated Voltage

630V,800V,1000/1250V,1600V,2000V,2500V

Capacitance Range

0.0010μF~0.036μF

Capacitance Tolerance

±3%(H),±5%(J),±10%(K)

Voltage Proo

1.75UR(5s)

Dissipation Factor

≤10×10-4 (1kHz,20℃)

≤20×10-4(10kHz,20℃)

Insulation Resistance

≥25000MQ(20℃,100V,1min)

Maximum Pulse Rise Time (dV/dt):

UR(V)

dV/dt(V/μs)

P=10

P=7.5

1000/1250

28000

30000

If the working voltage (U)is lower than the

rated voltage (UR), the capacitor can be

worked at a higher dV/dt.In this case, the

maximum allowed dV/dt is obtained by multiplying

the right value with UR/U.

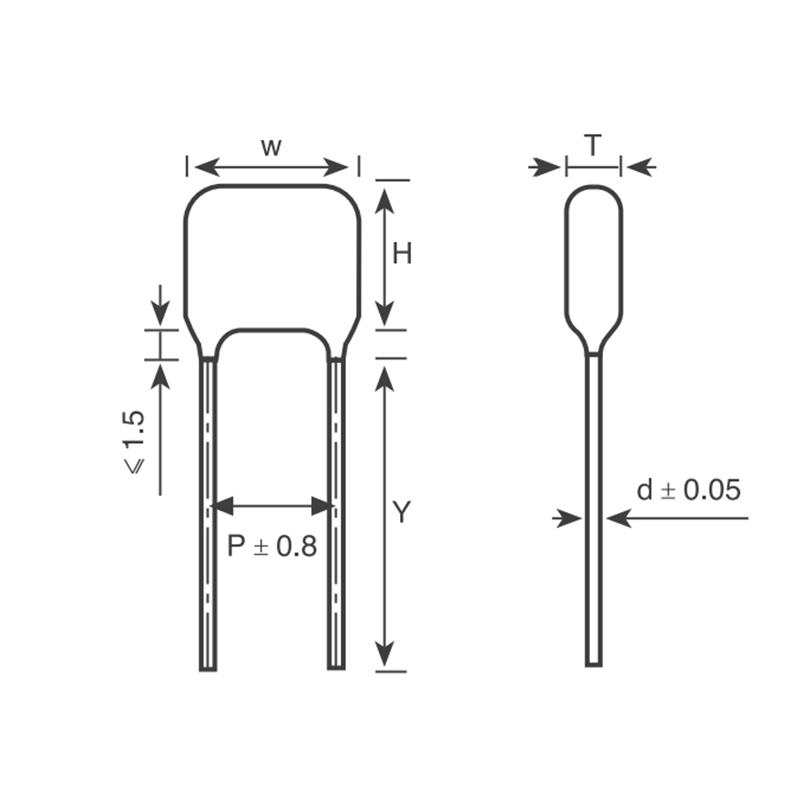

Dimensions(mm)

1000/1250Vdc(450Vac)

CN

(uF)

W

H

T

P

d

0.00

12.5

8.5

4.5

10

0.6

0.0015

12.5

9

5.5

10

0.6

0.0022

12.5

9.5

5.8

10

0.6

0.0027

12.5

8.5

5

10

0.6

0.0033

12.5

9.5

5.5

10

0.6

0.0039

12.5

9.8

4

10

0.6

0.0047

12.5

9.5

5

10

0.6

0.0056

12.5

10

5

10

0.6

0.0068

12.5

9.5

5.5

10

0.6

0.0082

12.5

10.5

5.5

10

0.6

0.01

12.5

11.5

6

10

0.6

0.001

10

8.5

5

7.5

0.6

0.0015

10

8.8

5.5

7.5

0.6

0.0022

10

9

5.5

7.5

0.6

0.0033

10

10

6.3

7.5

0.6

0.0039

10

9.5

5.5

7.5

0.6

0.0047

10

9.8

5.8

7.5

0.6
Click to view
