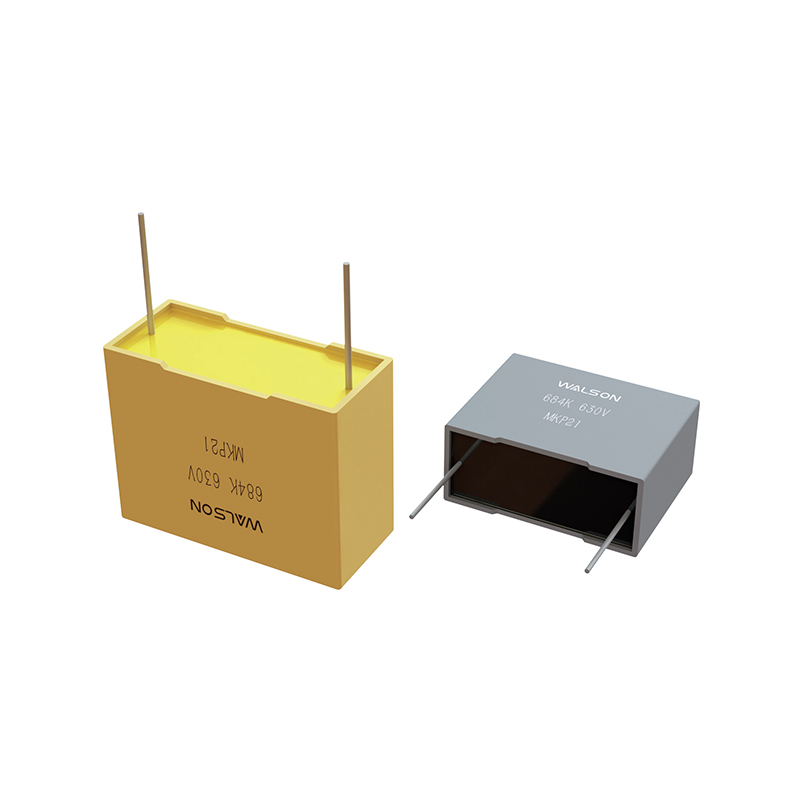

MKP21 series Metallized Polypropylene Film Capacitor (Box-Type) MKP21 series Metallized Polypropylene Film Capacitor (Box-Type)

MKP21 series Metallized Polypropylene Film Capacitor (Box-Type)

Features:
Metalized polypropylene film
The low loss at high frequency
Small inherent temperature rise
Plastic case (UL94 V-0), flame retardant epoxy resin sealing
Typical Applications:
Widely used in high frequency, DC, AC, and pulse circuits
S-correction circuits for TV sets and monitors

Specifications

Reference Standard

GB/T 10190(IEC60384-16)

Climatic Category

40/105/56

Rated Temperature

105℃

Operating Temperature Range

-40℃-105℃

Rated Voltage

160Vdc  (90Vac),250Vdc(160Vac),400Vdc(220Vac),630Vdc(250Vac)

1000Vdc (400Vac),1600Vdc (600Vac),2000Vdc (700Vac)

Capacitance Range

0.00056μF~15.0μF

Capacitance Tolerance

±2%(G),±3%(H),±5%(J),±10%(K),±20%(M)

Voltage Proof

1.6UR(5s)

Dissipation Factor

≤10×10~⁴ (1kHz,20℃)

Insulation Resistance

R15000MΩ,CN≤0.33μF

RCN≥5000s,CN>0.33μF

(20℃,100V,1min)

Maximum Pulse Rise Time (dV/dt):

If the working voltage (U)is bwer than the rated votage

(UR),the capacitor can be worked at a higher dV/dt.In this case, the maximum allowed dV/dt is obtained by multiplying the night value with UR/U

UR(V)

dV/dt(V/μs)

P=5.0

P=7.5

P=10.0

P=15.0

P=22.5

P=27.5

160

110

310

190

110

65

55

250

270

660

560

310

130

110

400

440

900

780

600

300

130

630

550

1500

1200

900

400

200

1000

2200

2000

800

1600







4500

1800



2000





9500

4500

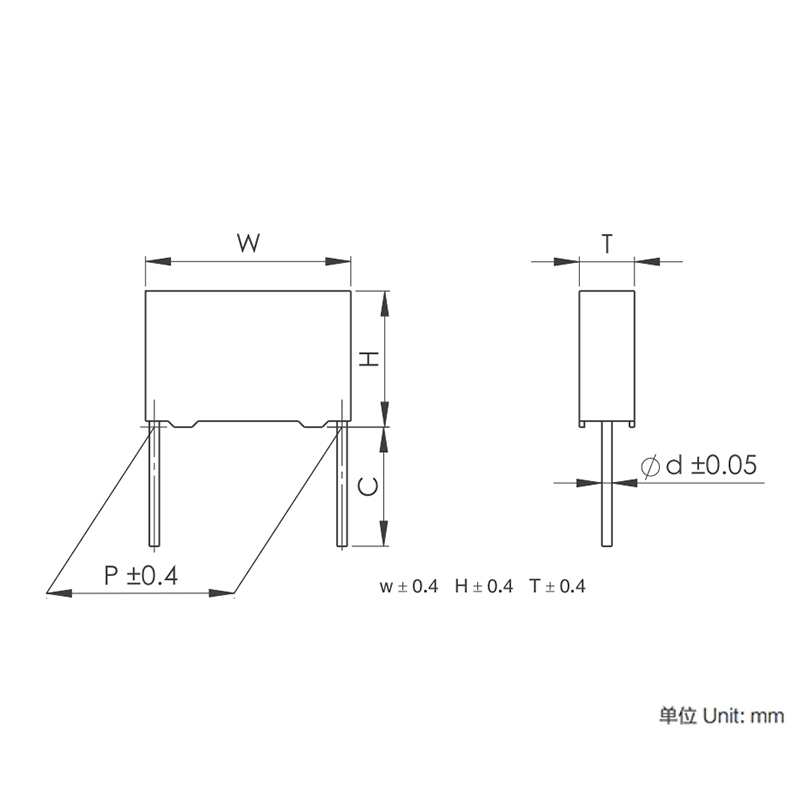

Dimensions(mm)

CN
(μF)
W H T P d
160Vdc(90Vac) 0.027 7.5 3.5 5 0.5
0.033 7.2 7.5 3.5 5 0.5
0.039 7.2 7.5 3.5 5 0.5
0.047 7.2 9.5 4.5 5 0.6
0.056 7.2 9.5 4.5 5 0.6
0.068 7.2 9.5 4.5 5 0.6
0.082 7.2 10 5 5 0.6
0.1 7.2 10 5 5 0.6
0.12 7.2 11 6 5 0.6
0.15 7.2 11 6 5 0.6
0.068 10.5 9 4 7.5 0.6
0.082 10.5 9 4 7.5 0.6
0.1 10.5 11 5 7.5 0.6
0.12 10.5 11 5 7.5 0.6
0.15 10.5 12 6 7.5 0.6
0.18 10.5 12 6 7.5 0.6
0.082 13 9 4 10 0.6
0.1 13 9 4 10 0.6
0.12 13 11 5 10 0.6
0.15 13 11 5 10 0.6
0.18 13 11 5 10 0.6
0.22 13 12 6 10 0.6
0.27 13 12 6 10 0.6
0.18 17.5 11 5 15 0.8
0.22 17.5 11 5 15 0.8
0.27 17.5 11 5 15 0.8
0.33 17.5 11 5 15 0.8
0.39 17.5 12 6 15 0.8
0.47 17.5 12 6 15 0.8
0.56 17.5 13.5 7.5 15 0.8
0.68 17.5 13.5 7.5 15 0.8
160Vdc(90Vac) 0.82 17.5 14.5 8.5 15 0.8
1 17.5 16 10 15 0.8
1.2 17.5 16 10 15 0.8
1.5 17.5 19 11 15 0.8
1.8 17.5 19 11 15 0.8
0.47 26.5 15 6 22.5 0.8
0.56 26.5 15 6 22.5 0.8
0.68 26.5 15 6 22.5 0.8
0.82 26.5 16 7 22.5 0.8
1 26.5 16 7 22.5 0.8
1.2 26.5 17 8.5 22.5 0.8
1.5 26.5 17 8.5 22.5 0.8
1.8 26.5 18.5 10 22.5 0.8
2.2 26.5 20 11 22.5 0.8
2.7 26.5 22 12 22.5 0.8
3.3 26.5 22 12 22.5 0.8
1 32 18 9 27.5 0.8
1.2 32 18 9 27.5 0.8
1.5 32 18 9 27.5 0.8
1.8 32 18 9 27.5 0.8
2.2 32 18 9 27.5 0.8
2.7 32 20 11 27.5 0.8
3.3 32 20 11 27.5 0.8
3.9 32 22 13 27.5 0.8
4.7 32 28 14 27.5 0.8
5.6 32 24.5 15 27.5 0.8
6.8 32 33 18 27.5 0.8
8.2 32 33 18 27.5 0.8
10 32 33 18 27.5 0.8
12 32 37 22 27.5 0.8
15 32 37 22 27.5 0.8
250Vdc(160Vac) 0.012 7.2 7.5 3.5 5 0.5
0.015 7.2 7.5 3.5 5 0.5
0.018 7.2 7.5 3.5 5 0.5
0.022 7.2 7.5 3.5 5 0.5
0.027 7.2 7.5 3.5 5 0.5
0.033 7.2 7.5 3.5 5 0.5
0.039 7.2 7.5 3.5 5 0.5
0.047 7.2 9.5 4.5 5 0.6
0.056 7.2 9.5 4.5 5 0.6
0.068 7.2 10 5 5 0.6
0.082 7.2 10 5 5 0.6
0.1 7.2 11 6 5 0.6
0.12 7.2 11 6 5 0.6
0.027 10.5 9 4 7.5 0.6
0.033 10.5 9 4 7.5 0.6
0.039 10.5 9 4 7.5 0.6
0.047 10.5 9 4 7.5 0.6
0.056 10.5 9 4 7.5 0.6
0.068 10.5 9 4 7.5 0.6
0.082 10.5 11 5 7.5 0.6
0.1 10.5 11 5 7.5 0.6
0.12 10.5 11 5 7.5 0.6
0.15 10.5 12 6 7.5 0.6
0.18 10.5 12 6 7.5 0.6
0.033 13 9 4 10 0.6
0.039 13 9 4 10 0.6
0.047 13 9 4 10 0.6
0.056 13 9 4 10 0.6
0.068 13 9 4 10 0.6
0.082 13 9 4 10 0.6
0.1 13 11 5 10 0.6
0.12 13 11 5 10 0.6
0.15 13 11 5 10 0.6
0.18 13 12 6 10 0.6
0.22 13 12 6 10 0.6
0.1 17.5 11 5 15 0.8
0.12 17.5 11 5 15 0.8
0.15 17.5 11 5 15 0.8
250Vdc(160Vac) 0.18 17.5 11 5 15 0.8
0.22 17.5 11 5 15 0.8
0.27 17.5 12 6 15 0.8
0.33 17.5 12 6 15 0.8
0.39 17.5 13.5 7.5 15 0.8
0.47 17.5 13.5 7.5 15 0.8
0.56 17.5 13.5 7.5 15 0.8
0.68 17.5 14.5 8.5 15 0.8
0.82 17.5 16 10 15 0.8
1 17.5 16 10 15 0.8
1.2 17.5 19 11 15 0.8
0.39 26.5 15 6 22.5 0.8
0.47 26.5 15 6 22.5 0.8
0.56 26.5 15 6 22.5 0.8
0.68 26.5 15 6 22.5 0.8
0.82 26.5 15 6 22.5 0.8
1 26.5 16 7 22.5 0.8
1.2 26.5 17 8.5 22.5 0.8
1.5 26.5 17 8.5 22.5 0.8
1.8 26.5 18.5 10 22.5 0.8
2.2 26.5 20 11 22.5 0.8
2.7 26.5 22 12 22.5 0.8
0.82 32 18 9 27.5 0.8
1 32 18 9 27.5 0.8
1.2 32 18 9 27.5 0.8
1.5 32 18 9 27.5 0.8
1.8 32 18 9 27.5 0.8
2.2 32 18 9 27.5 0.8
2.7 32 20 11 27.5 0.8
3.3 32 20 11 27.5 0.8
3.9 32 22 13 27.5 0.8
4.7 32 28 14 27.5 0.8
5.6 32 24.5 15 27.5 0.8
6.8 32 33 18 27.5 0.8
8.2 32 33 18 27.5 0.8
10 32 33 18 27.5 0.8
12 32 37 22 27.5 0.8
15 32 37 22 27.5 0.8
400Vdc(220Vac) 0.0039 7.2 7.5 3.5 5 0.5
0.0047 7.2 7.5 3.5 5 0.5
0.0056 7.2 7.5 3.5 5 0.5
0.0068 7.2 7.5 3.5 0.5
0.0082 7.2 7.5 3.5 5 0.5
0.01 7.2 7.5 3.5 5 0.5
0.012 7.2 7.5 3.5 0.5
0.015 7.2 9.5 4.5 5 0.6
0.018 7.2 9.5 4.5 5 0.6
0.022 7.2 9.5 4.5 5 0.6
0.027 7.2 10 5 5 0.6
0.033 7.2 11 6 0.6
0.039 7.2 11 6 5 0.6
0.047 72 11 6 5 0.6
0.01 10.5 9 4 7.5 0.6
0.012 10.5 9 4 7.5 0.6
0.015 10.5 9 4 7.5 0.6
0.018 10.5 9 4 7.5 0.6
0.022 10.5 9 4 7.5 0.6
0.027 10.5 9 4 7.5 0.6
0.033 10.5 11 5 7.5 0.6
0.039 10.5 11 5 7.5 0.6
0.047 10.5 11 5 7.5 0.6
0.056 10.5 12 6 7.5 0.6
0.068 10.5 12 6 7.5 0.6
0.015 13 9 4 10 0.6
0.018 13 9 4 10 0.6
0.022 13 9 4 10 0.6
0.027 13 9 4 10 0.6
0.033 13 9 4 10 0.6
0.039 13 9 4 10 0.6
0.047 13 11 5 10 0.6
0.056 13 11 5 10 0.6
0.068 13 11 5 10 0.6
0.082 13 12 6 10 0.6
0.1 13 12 6 10 0.6
0.068 17.5 11 5 15 0.8
0.082 17.5 11 5 15 0.8
400Vdc(220Vac) 0.1 17.5 11 5 15 0.8
0.12 17.5 11 5 15 0.8
0.15 17.5 12 6 15 0.8
0.18 17.5 12 6 15 0.8
0.22 17.5 13.5 7.5 15 0.8
0.27 17.5 13.5 7.5 15 0.8
0.33 17.5 14.5 8.5 15 0.8
0.39 17.5 16 10 15 0.8
0.47 17.5 16 10 15 0.8
0.56 17.5 19 11 15 0.8
0.68 17.5 19 11 15 0.8
0.18 26.5 15 6 22.5 0.8
0.22 26.5 15 6 22.5 0.8
0.27 26.5 15 6 22.5 0.8
0.33 26.5 15 6 22.5 0.8
0.39 26.5 16 7 22.5 0.8
0.47 26.5 16 7 22.5 0.8
0.56 26.5 17 8.5 22.5 0.8
0.68 26.5 17 8.5 22.5 0.8
0.82 26.5 18.5 10 22.5 0.8
1 26.5 20 11 22.5 0.8
1.2 26.5 22 12 22.5 0.8
1.5 26.5 22 12 22.5 0.8
0.56 32 18 9 27.5 0.8
0.68 32 18 9 27.5 0.8
0.82 32 18 9 27.5 0.8
1 32 18 9 27.5 0.8
1.2 32 20 11 27.5 0.8
1.5 32 20 11 27.5 0.8
1.8 32 22 13 27.5 0.8
2.2 32 24.5 15 27.5 0.8
2.7 32 28 14 27.5 0.8
3.3 32 33 18 27.5 0.8
3.9 32 33 18 27.5 0.8
4.7 32 37 22 27.5 0.8
5.6 32 37 22 27.5 0.8
630Vdc(250Vac) 0.001 7.2 7.5 3.5 5 0.5
0.0012 7.2 7.5 3.5 5 0.5
0.0015 7.2 7.5 3.5 5 0.5
0.0018 7.2 7.5 3.5 5 0.5
0.0022 7.2 7.5 3.5 5 0.5
0.0027 7.2 7.5 3.5 5 0.5
0.0033 7.2 7.5 3.5 5 0.5
0.0039 7.2 9.5 4.5 5 0.6
0.0047 7.2 9.5 4.5 5 0.6
0.0056 7.2 10 5 5 0.6
0.0068 7.2 10 5 5 0.6
0.0082 7.2 11 6 5 0.6
0.01 7.2 11 6 5 0.6
0.012 7.2 11 6 5 0.6
0.001 10.5 9 4 7.5 0.6
0.0012 10.5 9 4 7.5 0.6
0.0015 10.5 9 4 7.5 0.6
0.0018 10.5 9 4 7.5 0.6
0.0022 10.5 9 4 7.5 0.6
0.0027 10.5 9 4 7.5 0.6
0.0033 10.5 9 4 7.5 0.6
0.0039 10.5 9 4 7.5 0.6
0.0047 10.5 9 4 7.5 0.6
0.0056 10.5 9 4 7.5 0.6
0.0068 10.5 9 4 7.5 0.6
0.0082 10.5 9 4 7.5 0.6
0.01 10.5 9 4 7.5 0.6
0.012 10.5 9 4 7.5 0.6
0.015 10.5 11 5 7.5 0.6
0.018 10.5 11 5 7.5 0.6
0.022 10.5 11 5 7.5 0.6
630Vdc(250Vac) 0.027 10.5 12 6 7.5 0.6
0.033 10.5 12 6 7.5 0.6
0.001 13 9 4 10 0.6
0.0012 13 9 4 10 0.6
0.0015 13 9 4 10 0.6
0.0018 13 9 4 10 0.6
0.0022 13 9 4 10 0.6
0.0027 13 9 4 10 0.6
0.0033 13 9 4 10 0.6
0.0039 13 9 4 10 0.6
0.0047 13 9 4 10 0.6
0.0056 13 9 4 10 0.6
0.0068 13 9 4 10 0.6
0.0082 13 9 4 10 0.6
0.01 13 9 4 10 0.6
0.012 13 9 4 10 0.6
0.015 13 9 4 10 0.6
0.018 13 9 4 10 0.6
0.022 13 11 5 10 0.6
0.027 13 11 5 10 0.6
0.033 13 11 5 10 0.6
0.039 13 12 6 10 0.6
0.047 13 12 6 10 0.6
0.027 17.5 11 5 15 0.8
0.033 17.5 11 5 15 0.8
0.039 17.5 11 5 15 0.8
0.047 17.5 11 5 15 0.8
0.056 17.5 11 5 15 0.8
0.068 17.5 12 6 15 0.8
0.082 17.5 12 6 15 0.8
0.1 17.5 13.5 7.5 15 0.8
630Vdc(250Vac) 0.12 17.5 13.5 7.5 15 0.8
0.15 17.5 13.5 7.5 15 0.8
0.18 17.5 14.5 8.5 15 0.8
0.22 17.5 16 10 15 0.8
0.27 17.5 19 11 15 0.8
0.33 17.5 19 11 15 0.8
0.082 26.5 15 6 22.5 0.8
0.1 26.5 15 6 22.5 0.8
0.12 26.5 15 6 22.5 0.8
0.15 26.5 15 6 22.5 0.8
0.18 26.5 15 6 22.5 0.8
0.22 26.5 16 7 22.5 0.8
0.27 26.5 17 8.5 22.5 0.8
0.33 26.5 17 8.5 22.5 0.8
0.39 26.5 18.5 10 22.5 0.8
0.47 26.5 18.5 10 22.5 0.8
0.56 26.5 20 11 22.5 0.8
0.68 26.5 22 12 22.5 0.8
0.33 32 18 9 27.5 0.8
0.39 32 18 9 27.5 0.8
0.47 32 18 9 27.5 0.8
0.56 32 20 11 27.5 0.8
0.68 32 20 11 27.5 0.8
0.82 32 20 11 27.5 0.8
1 32 22 13 27.5 0.8
1.2 32 24.5 15 27.5 0.8
1.5 32 28 14 27.5 0.8
1.8 32 33 18 27.5 0.8
2.2 32 33 18 27.5 0.8
2.7 32 37 22 27.5 0.8
3.3 32 37 22 27.5 0.8
1000Vdc(400Vac) 0.001 13 9 4 10 0.6
0.0012 13 9 4 10 0.6
0.0015 13 9 4 10 0.6
0.0018 13 9 4 10 0.6
0.0022 13 9 4 10 0.6
0.0027 13 9 4 10 0.6
0.0033 13 9 4 10 0.6
0.0039 13 9 4 10 0.6
0.0047 13 11 5 10 0.6
0.0056 13 11 5 10 0.6
0.0068 13 11 5 10 0.6
0.0082 13 12 6 10 0.6
0.01 13 12 6 10 0.6
0.0022 17.5 11 5 15 0.8
0.0027 17.5 11 5 15 0.8
0.0033 17.5 11 5 15 0.8
0.0039 17.5 11 5 15 0.8
0.0047 17.5 11 5 15 0.8
0.0056 17.5 11 5 15 0.8
0.0068 17.5 11 5 15 0.8
0.0082 17.5 11 5 15 0.8
0.01 17.5 11 5 15 0.8
0.012 17.5 11 5 15 0.8
0.015 17.5 12 6 15 0.8
0.018 17.5 12 6 15 0.8
0.022 17.5 13.5 7.5 15 0.8
0.027 17.5 13.5 7.5 15 0.8
0.033 17.5 14.5 8.5 15 0.8
0.039 17.5 16 10 15 0.8
0.047 17.5 16 10 15 0.8
0.056 17.5 19 11 15 0.8
0.068 17.5 19 11 15
0.018 26.5 15 6 22.5 0.8
0.022 26.5 15 6 22.5 0.8
0.027 26.5 15 6 22.5 0.8
0.033 26.5 15 6 22.5 0.8
0.039 26.5 15 6 22.5 0.8
0.047 26.5 16 7 22.5 0.8
0.056 26.5 16 7 22.5 0.8
0.068 26.5 17 8.5 22.5 0.8
0.082 26.5 17 8.5 22.5 0.8
0.1 26.5 18.5 10 22.5 0.8
0.12 26.5 22 12 22.5 0.8
0.15 26.5 22 12 22.5 0.8
1600Vdc(600Vac) 0.00056 17.5 11 5 15 0.8
0.00062 17.5 11 5 15 0.8
0.00068 17.5 11 5 15 0.8
0.00082 17.5 11 5 15 0.8
0.001 17.5 11 5 15 0.8
0.0012 17.5 11 5 15 0.8
0.0015 17.5 11 5 15 0.8
0.0018 17.5 11 5 15 0.8
0.0022 17.5 11 5 15 0.8
0.0027 17.5 11 5 15 0.8
0.0033 17.5 11 5 15 0.8
0.0039 17.5 11 5 15 0.8
0.0047 17.5 11 5 15 0.8
0.0056 17.5 11 5 15 0.8
0.0068 17.5 11 5 15 0.8
0.0082 17.5 12 6 15 0.8
0.01 17.5 12 6 15 0.8
0.012 17.5 12 6 15 0.8
0.015 17.5 13.5 7.5 15 0.8
0.018 17.5 13.5 7.5 15 0.8
0.022 17.5 14.5 8.5 15 0.8
0.027 17.5 16 10 15 0.8
0.033 17.5 16 10 15 0.8
0.039 17.5 19 11 15 0.8
0.047 17.5 19 11 15 0.8
0.015 26.5 15 6 22.5 0.8
0.018 26.5 15 6 22.5 0.8
0.022 26.5 15 6 22.5 0.8
0.027 26.5 16 7 22.5 0.8
0.033 26.5 16 7 22.5 0.8
0.039 26.5 17 8.5 22.5 0.8
0.047 26.5 18.5 10 22.5 0.8
0.056 26.5 18.5 10 22.5 0.8
0.068 26.5 22 12 22.5 0.8
0.082 26.5 22 12 22.5 0.8
0.1 26.5 22 12 22.5 0.8
2000Vdc(700Vac) 0.00056 17.5 11 5 15 0.8
0.00062 17.5 11 5 15 0.8
0.00068 17.5 11 5 15 0.8
0.00082 17.5 11 5 15 0.8
0.001 17.5 11 5 15 0.8
0.0012 17.5 11 5 15 0.8
0.0015 17.5 11 5 15 0.8
0.0018 17.5 11 5 15 0.8
0.0022 17.5 11 5 15 0.8
0.0027 17.5 11 5 15 0.8
0.0033 17.5 11 5 15 0.8
0.0039 17.5 11 5 15 0.8
0.0047 17.5 11 5 15 0.8
0.0056 17.5 12 6 15 0.8
0.0068 17.5 12 6 15 0.8
0.0082 17.5 13.5 7.5 15 0.8
0.01 17.5 13.5 7.5 15 0.8
0.012 17.5 14.5 8.5 15 0.8
0.015 17.5 14.5 8.5 15 0.8
0.018 17.5 16 10 15 0.8
0.022 17.5 19 11 15 0.8
0.0068 26.5 15 6 22.5 0.8
0.0082 26.5 15 6 22.5 0.8
0.01 26.5 15 6 22.5 0.8
0.012 26.5 15 6 22.5 0.8
0.015 26.5 15 6 22.5 0.8
0.018 26.5 16 7 22.5 0.8
0.022 26.5 17 8.5 22.5 0.8
0.027 26.5 17 8.5 22.5 0.8
0.033 26.5 18.5 10 22.5 0.8
0.039 26.5 18.5 10 22.5 0.8
0.047 26.5 22 12 22.5 0.8
0.056 26.5 22 12 22.5 0.8

Question? Check out our answer.

  • HOW LONG CAN I GET THE FEEDBACK AFTER WE SENT THE INQUIRY?

    We will reply to you within 12 hours of the working day.

  • ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

    We have a self-owned factory, we also have our own international sales department. We produce and sell all by ourselves.

  • WHAT PRODUCTS CAN YOU OFFER?

    We focus on film capacitors.

  • WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?

    Our products are used in a wide range of applications, including household appliances, power supplies, electricity meters, lighting, welding machines, rail transit, electric vehicles, power grids, UPS/EPS, medical equipment, photovoltaic inverters, wind power converters, and more.

  • CAN YOU DO CUSTOMIZED PRODUCTS?

    Yes, we are experts in doing customized products according to the customers’ drawings or samples.

ABOUT US

Focused on Electronic Components Manufacturing for 20 Years.

Walson Electronics was established in 2001, with more than 20 years of experience in R&D, manufacturing, sale and service of film capacitors. Custom MKP21 series Metallized Polypropylene Film Capacitor (Box-Type) Manufacturers and MKP21 series Metallized Polypropylene Film Capacitor (Box-Type) Factory

We always adhere to the cooperation of advanced automation and industrialization. the company continues to introduce domestic and foreign outstanding production equipment, while self-developed production management software, enterprise collaborative management to scientific and efficient operation, has achieved 1 billion/annual production capacity breakthrough, and maintains an orderly rise.

Walson Electronics products have covered more industries, including new energy and power industry, Photovoltaic inverters, LED lighting, household appliances and various power sources and other industries.

Adhering to the concept of innovative technology, honest service and professional quality, Walson Electronics pushes forward capacitor products continuously and is sure to become the industry pioneer with innovative advantages.

Contact Us
  • Chairman - Zhenqiu An
    Chairman - Zhenqiu An
  • VP - Andrew An
    VP - Andrew An
  • Salon at Walson
    Salon at Walson
  • Wall of Walson Honors
    Wall of Walson Honors
  • Lobby at Walson
    Lobby at Walson
  • Production Centre Building
    Production Centre Building
  • Production Centre
    Production Centre
  • WALSON
    WALSON
  • Headquarter Office
    Headquarter Office
  • Customer Service Team
    Customer Service Team
  • Product Design
    Product Design
  • Boardroom at Walson
    Boardroom at Walson
  • Salon at Walson
    Salon at Walson
  • Walson Laboratory
    Walson Laboratory
  • Walson Laboratory
    Walson Laboratory
  • Walson Laboratory
    Walson Laboratory
  • Performance Test at Walson Laboratory
    Performance Test at Walson Laboratory

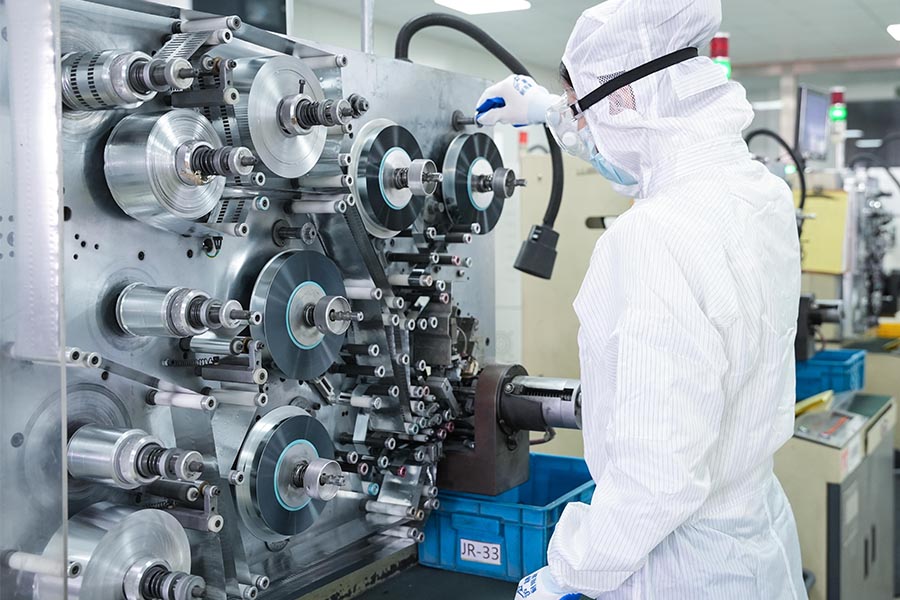

  • Production Equipment
    Production Equipment
News

Further negotiation?
We are glad to hear from you.

Build A Partnership With Us With Our Industry Insight!
and strategic vision!

* We promise never to disclose your information.

Message Feedback
