Climatic Category Passive Flammability category |
40/110/56/B |
||||
Operating Temperature Range |
-40℃~+110℃ |
||||
Rated Voltage |
250Vac~310Vac,50/60Hz |
||||
Capacitance Range |
0.0010μF~25.0μF |
||||
Capacitance Tolerance |
±10%(K),±20%(M) |
||||
Voltage Proof |
Between Terminals: |
4.3UR(Vdc),2s |
|||
Between Term finals To Case: |
2120Vac,1min |
||||
Insulation Resistance |
R≥15000MΩ,CN≤0.33μF (20℃,100V,1min) RCN≥5000s,CN>0.33μF |
||||
Dissipation Factor |
0.0010μF≤CN<0.010μF |
≤20×10-4(1kHz,20℃) |
≤20×10-⁴ (10kHz,20℃) |
||
0.010μF≤CN<0.47μF |
≤10×10-4(1kHz,20℃) |
≤20×10-4(10kHz,20℃) |
|||
0.47μF≤CN<1.0μF |
≤20×10-4(1kHz,20℃) |
≤40×10-⁴ (10kHz,20℃) |
|||
1.0μF≤CN<10.0μF |
≤30×10-4(1kHz,20℃) |
||||
10.0μF≤CN<50.0μF |
≤40×10-4(1kHz,20℃) |
||||
R com m end form ax rated supply mains voltage 250Vac application |
CN (μF) |

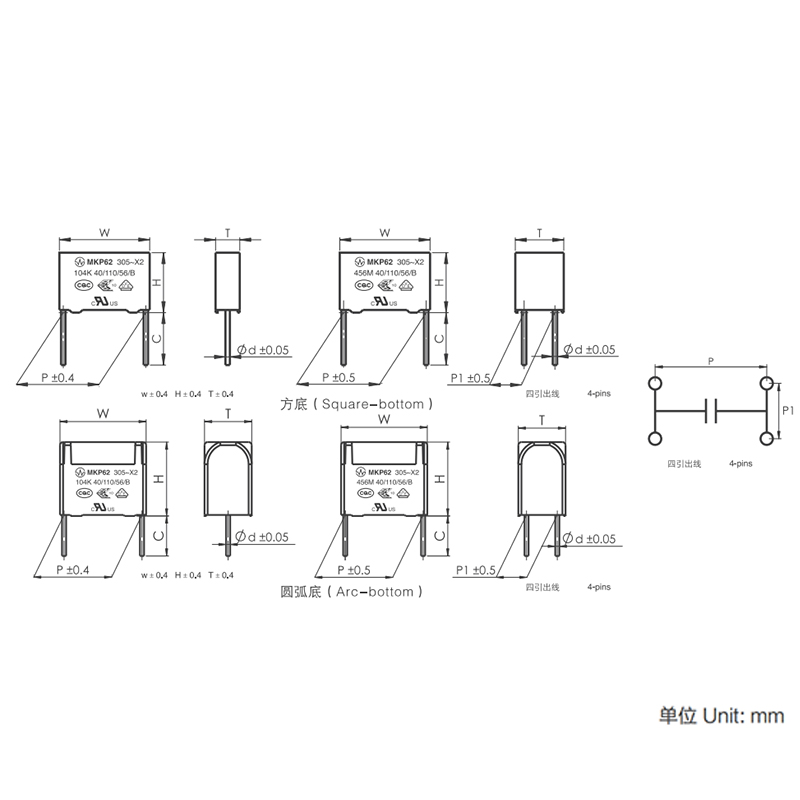

W | H | T | P | d | |
250/275/280/300/310Vac | 0.001 | 10.5 | 9 | 4 | 7.5 | 0.6 |
0.0012 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.0015 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.0018 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.0022 | 10.5 | 9 | 40 | 7.5 | 0.6 | |
0.0027 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.0033 | 10.5 | 9 | 4.) | 7.5 | 0.6 | |
0.0039 | 10.5 | 90 | 40 | 7.5 | 0.6 | |
0.0047 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.0056 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.0068 | 0.5 | 9 | 4 | 7.5 | 0.6 | |
0.0082 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.01 | 0.5 | 9 | 4 | 7.5 | 0.6 | |
0.012 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.015 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.018 | 0.5 | 9 | 4 | 7.5 | 0.6 | |
0.022 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.027 | 10.5 | 9 | 4 | 7.5 | 0.6 | |
0.033 | 10.5 | 11 | 5 | 7.5 | 0.6 | |
0.039 | 10.5 | 44 | 5 | 7.5 | 0.6 | |
0.047 | 10.5 | 11 | 5 | 7.5 | 0.6 | |
0.056 | 10.5 | 13 | 6 | 7.5 | 0.6 | |
0.068 | 10.5 | 13 | 6 | 7.5 | 0.6 | |
0.0047 | 13 | 9 | 4 | 10 | 0.6 | |
0.0056 | 13 | 9 | 4 | 10 | 0.6 | |
0.0068 | 13 | 9 | 4 | 10 | 0.6 | |
0.0082 | 13 | 9 | 4 | 10 | 0.6 | |
0.01 | 13 | 9 | 0 | 10 | 0.6 | |
0.0015 | 13 | 9 | 4 | 10 | 0.6 | |
0.018 | 13 | 9 | 4 | 10 | 0.6 | |
0.022 | 13 | 9 | 4 | 10 | 0.6 | |
0.027 | 13 | ) | 4.) | 10 | 0.6 | |
0.033 | 13 | 9 | 40 | 10 | 0.6 | |
0.039 | 13 | 9 | 40 | 10 | 0.6 | |
0.047 | 13 | 9 | 4 | 10 | 0.6 | |
0.056 | 13 | 11 | 5 | 10 | 0.6 | |
0.068 | 13 | 11 | 5 | 10 | 0.6 | |
0.082 | 13 | 11 | 5 | 10 | 0.6 | |
0.10M | 13 | 44 | 50 | 10 | 0.6 | |
0.10K | 13 | 12 | 6 | 10 | 0.6 | |
0.12 | 13 | 13 | 7 | 10 | 0.6 | |
0.15 | 13 | 13 | 7 | 10 | 0.6 | |
0.18 | 13 | 14 | 8 | 10 | 0.6 | |
0.22M | 13 | 14 | 8 | 10 | 0.6 | |
250/275/280/300/310Vac | 0.01 | 17.5 | 9.5 | 5 | 15 | 0.6 |
0.015 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.015 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.018 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.022 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.027 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.033 | 17.5 | 0b | 5 | 15 | 0.6 | |
0.039 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.047 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.056 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.068 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.082 | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.10M | 17.5 | 9.5 | 5 | 15 | 0.6 | |
0.1 | 17.5 | 11 | 5 | 15 | 0.6 | |
0.12 | 17.5 | 11 | 5 | 15 | 0.6 | |
0.15M | 17.5 | 11 | 5 | 15 | 0.6 | |
0.15K | 17.5 | 2 | 6 | 15 | 0.6 | |
0.18 | 17.5 | 12 | 6 | 15 | 0.6 | |
0.22M | 17.5 | 12 | 6 | 15 | 0.6 | |
0.22K | 17.5 | 13.5 | 6 | 15 | 0.6 | |
0.22K | 17.5 | 12 | 7 | 15 | 0.6 | |
0.22K | 17.5 | 13.5 | 7.5 | 15 | 0.6 | |
0.27 | 17.5 | 13.5 | 7.5 | 15 | 0.6 | |
0.33M | 17.5 | 13.5 | 7.5 | 15 | 0.6 | |
0.33K | 17.5 | 14 | 8 | 15 | 0.6 | |
0.33M | 17.5 | 12.5 | 9 | 15 | 0.6 | |
0.33M | 17.5 | 17.5 | 6 | 15 | 0.6 | |
0.33K | 17.5 | 18.5 | 7.5 | 15 | 0.8 | |
0.33 | 17.5 | 12 | 13 | 15 | 0.8 | |
0.39 | 17.5 | 14.5 | 8.5 | 15 | 0.6 | |
0,47M | 17.5 | 14.5 | 8.5 | 15 | 0.6 | |
0.47M | 17.5 | 18.5 | 7.5 | 15 | 0.8 | |
0.47K | 17.5 | 16 | 10 | 15 | 0.8 | |
0.56 | 17.5 | 16 | 10 | 15 | 0.8 | |
0.6 | 17.5 | 19 | 11 | 15 | 0.8 | |
0.68 | 17.5 | 9 | 11 | 15 | 0.8 | |
0.82M | 17.5 | 19 | 11 | 15 | 0.8 | |
0.15 | 26.5 | 15 | 6 | 22.5 | 0.8 | |
0.18 | 26.5 | 15 | 6 | 22.5 | 0.8 | |
0.22 | 26.5 | 15 | 6 | 22.5 | 0.8 | |
0.27 | 26.5 | 15 | 6 | 22.5 | 0.8 | |
0.33 | 26.5 | 5 | 6 | 22.5 | 0.8 | |
0.39 | 26.5 | 5 | 6 | 22.5 | 0.8 | |
0.47M | 26.5 | 5 | 6 | 22.5 | 0.8 | |
0.47K | 26.5 | 16 | 7 | 22.5 | 0.8 | |
0.56 | 26.5 | 16 | 7 | 22.5 | 0.8 | |
0.6 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | |
0.68 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | |
0.82 | 26.5 | 18.5 | 10 | 22.5 | 0.8 | |
1 | 26.5 | 18.5 | 10 | 22.5 | 0.8 | |
1.2 | 26.5 | 20 | 11 | 22.5 | 0.8 | |
1.5M | 26.5 | 20 | 11 | 22.5 | 0.8 | |
1.5k | 26.5 | 22 | 12 | 22.5 | 0.8 | |
250/275/280/300/310Vac | 1.8 | 26.5 | 24.5 | 15.5 | 22.5 | 0.8 |
2.2 | 26.5 | 24.5 | 15.5 | 22.5 | 0.8 | |
2.2 | 26.5 | 29.5 | 14.5 | 22.5 | 0.8 | |
0.39 | 32 | 18 | 9 | 27.5 | 0.8 | |
0.47 | 32 | 18 | 9 | 27.5 | 0.8 | |
0.56 | 32 | 18 | 9 | 27.5 | 0.8 | |
0.68 | 32 | 18 | 9 | 27.5 | 0.8 | |
0.82 | 32 | 18 | 9 | 27.5 | 0.8 | |
1 | 32 | 18 | 9 | 27.5 | 0.8 | |
1 | 32 | 12 | 18 | 27.5 | 0.8 | |
1.2 | 32 | 20 | 11 | 27.5 | 0.8 | |
1.5 | 32 | 20 | 11 | 27.5 | 0.8 | |
1.8 | 32 | 22 | 13 | 27.5 | 0.8 | |
2.2M | 32 | 22 | 13 | 27.5 | 0.8 | |
2.2K | 32 | 25 | 13 | 27.5 | 0.8 | |
★2.2 | 32 | 16 | 22 | 27.5 | 0.8 | |
2.7 | 32 | 28 | 14 | 27.5 | 0.8 | |
3.3 | 32 | 30 | 6 | 27.5 | 0.8 | |
3.3M | 32 | 24.5 | 15 | 27.5 | 0.8 | |
3.3K | 32 | 28 | 17 | 27.5 | 0.8 | |
★3.3M | 32 | 16 | 27.5 | 27.5 | 0.8 | |
★3.3K | 32 | 18.5 | 31 | 27.5 | 0.8 | |
3.9 | 32 | 29 | 19 | 27.5 | 0.8 | |
3.9 | 32 | 33 | 18 | 27.5 | 0.8 | |
4.7M | 32 | 33 | 18 | 27.5 | 0.8 | |
★4.7M | 32 | 18.5 | 31 | 27.5 | 0.8 | |
4.7K | 32 | 33 | 18 | 27.5 | 0.8 | |
★4.7 | 32 | 30 | 21 | 27.5 | 0.8 | |
5.6 | 32 | 37 | 22 | 27.5 | 0.8 | |
6.8M | 32 | 37 | 22 | 27.5 | 0.8 | |
1.5 | 41 | 22 | 11 | 37.5 | 1 | |
1.8 | 41 | 22 | 11 | 37.5 | 1 | |
2.2 | 41 | 24 | 13 | 37.5 | 1 | |
2.2 | 42 | 15 | 24 | 37.5 | 1 | |
2.7 | 41 | 24 | 13 | 37.5 | 1 | |
3.3 | 41 | 26 | 15 | 37.5 | 1 | |
3.3 | 42 | 28 | 14 | 37.5 | 1 | |
3.3 | 42 | 15 | 24 | 37.5 | 1 | |
3.9 | 41 | 30 | 16 | 37.5 | 1 | |
4.7M | 42 | 19 | 24 | 37.5 | 1 | |
4.7K | 41 | 20 | 26 | 37.5 | 1 | |
4.7 | 41 | 30 | 16 | 37.5 | 1 | |
5.6 | 41 | 33.5 | 18.5 | 37.5 | 1 | |
6.8 | 41 | 33.5 | 18.5 | 37.5 | 1 | |
6.8 | 42 | 24 | 32 | 37.5 | 1 | |
8.2 | 41 | 37 | 22 | 37.5 | 1 | |
10.0M | 41 | 37 | 22 | 37.5 | 1 | |
10.0K | 41 | 41 | 26 | 37.5 | 1 | |
10.0K | 41.5 | 37.5 | 27.5 | 37.5 | 1 | |
12 | 41 | 43 | 28 | 37.5 | 1 | |
15 | 42 | 45 | 30 | 37.5 | 1 | |
20 | 42 | 57.5 | 30 | 37.5 | 1 | |
20 | 57 | 45 | 30 | 52.5 | 1.2 | |
20 | 57 | 30 | 44 | 52.5 | 1.2 | |
25 | 57 | 50 | 35 | 52.5 | 1.2 | |
250/275/280/300/310Vac | 0.022 | 10.5 | 9 | 4 | 7.5 | 0.6 |
0.027 | 10.5 | 11 | 5 | 7.5 | 0.6 | |
0.033 | 10.5 | 11 | 5 | 7.5 | 0.6 | |
0.039 | 10.5 | 12 | 6 | 7.5 | 0.6 | |
0.047 | 10.5 | 12 | 6 | 7.5 | 0.6 | |
0.033 | 13 | 11 | 5 | 10 | 0.6 | |
0.039 | 13 | 11 | 5 | 10 | 0.6 | |
0.047 | 13 | 11 | 5 | 10 | 0.6 | |
0.056 | 13 | 11 | 5 | 10 | 0.6 | |
0.068 | 13 | 12 | 6 | 10 | 0.6 | |
0.082 | 13 | 12 | 6 | 10 | 0.6 | |
0.1 | 13 | 12 | 6 | 10 | 0.6 | |
0.12 | 13 | 14 | 8 | 10 | 0.6 | |
0.15 | 13 | 14 | 8 | 10 | 0.6 | |
0.01 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.012 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.015 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.018 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.022 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.027 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.033 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.039 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.047 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.056 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.068 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.082 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.1 | 17.5 | 11 | 5 | 15 | 0.8 | |
0.12 | 17.5 | 12 | 6 | 15 | 0.8 | |
0.15 | 17.5 | 12 | 6 | 15 | 0.8 | |
0.18 | 17.5 | 13.5 | 7.5 | 15 | 0.8 | |
0.22 | 17.5 | 13.5 | 7.5 | 15 | 0.8 | |
0.27 | 17.5 | 14.5 | 8.5 | 15 | 0.8 | |
0.33 | 17.5 | 16 | 10 | 15 | 0.8 | |
0.39 | 17.5 | 19 | 11 | 15 | 0.8 | |
0.47 | 17.5 | 19 | 11 | 15 | 0.8 | |
250/275/280/300/310Vac | 0.22 | 26.5 | 15 | 6 | 22.5 | 0.8 |
0.27 | 26.5 | 16 | 7 | 22.5 | 0.8 | |
0.33 | 26.5 | 16 | 7 | 22.5 | 0.8 | |
0.39 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | |
0.47 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | |
0.56 | 26.5 | 18.5 | 10 | 22.5 | 0.8 | |
0.68 | 26.5 | 18.5 | 10 | 22.5 | 0.8 | |
0.82 | 26.5 | 22 | 12 | 22.5 | 0.8 | |
1 | 26.5 | 22 | 12 | 22.5 | 0.8 | |
1.2 | 26.5 | 24.5 | 15.5 | 22.5 | 0.8 | |
1.5 | 26.5 | 24.5 | 15.5 | 22.5 | 0.8 | |
0.82 | 32 | 20 | 11 | 27.5 | 0.8 | |
1 | 32 | 20 | 11 | 27.5 | 0.8 | |
1.2 | 32 | 22 | 13 | 27.5 | 0.8 | |
1.5 | 32 | 22 | 13 | 27.5 | 0.8 | |
1.8 | 32 | 24.5 | 15 | 27.5 | 0.8 | |
2.2 | 32 | 28 | 14 | 27.5 | 0.8 | |
2.7 | 32 | 33 | 18 | 27.5 | 0.8 | |
3.3 | 32 | 33 | 22 | 27.5 | 0.8 | |
3.9 | 32 | 37 | 22 | 27.5 | 0.8 | |
4.7 | 32 | 37 | 11 | 27.5 | 0.8 | |
1.5 | 41 | 22 | 11 | 37.5 | 1 | |
1.8 | 41 | 26 | 12 | 37.5 | 1 | |
2.2M | 41 | 26 | 12 | 37.5 | 1 | |
2.2K | 42 | 28 | 14 | 37.5 | 1 | |
2.7 | 42 | 28 | 14 | 37.5 | 1 | |
3.3 | 41 | 30 | 16 | 37.5 | 1 | |
3.9 | 41 | 32 | 17 | 37.5 | 1 | |
4.7 | 41 | 33.5 | 18.5 | 37.5 | 1 | |
5.6 | 41 | 37 | 22 | 37.5 | 1 | |
6.8 | 41 | 37 | 22 | 37.5 | 1 | |
8.2 | 41 | 41 | 26 | 37.5 | 1 | |
10 | 41 | 43 | 28 | 37.5 | 1 |
