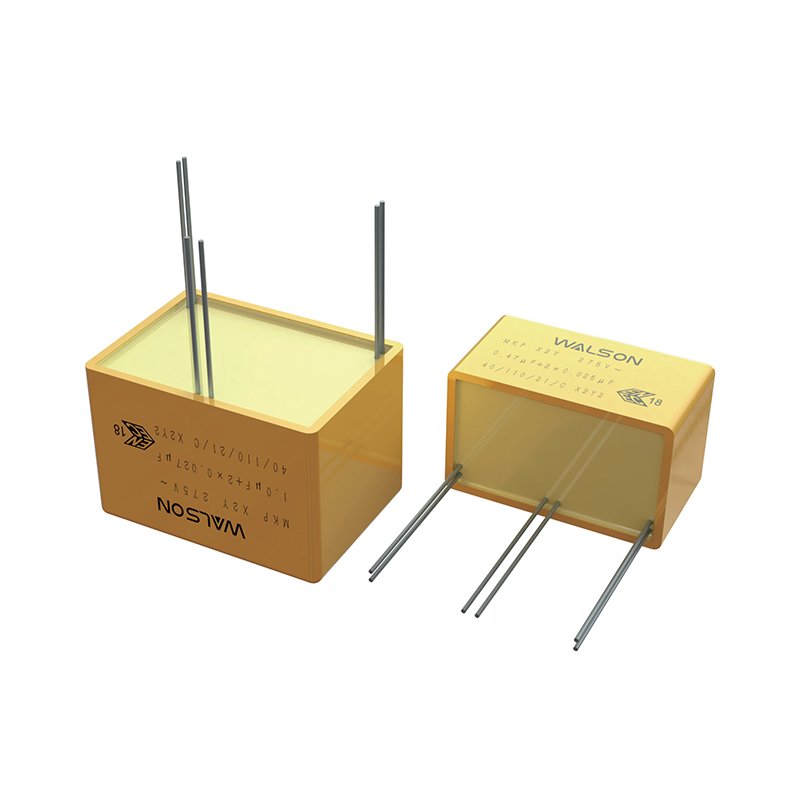

MKP X2Y series Capacitor Module for Electromagnetic Interference Suppression (Class X2+Y)

Features:
Metalized polypropylene film, non-inductive construction, with good electrical properties
X2 and Y2 class suppress-interference capacitors have a triangular connection and integrated structure with three ends out
Flame-resistant plastic case and epoxy resin sealing (UL 94 V-0), tinned copper-clad steel wires lead out at three ends
Referring to the GB/T 6346.14 (idt IEC 60384-14) standard, obtained ENEC certification
Typical Applications:
Used in-line bypass, antenna coupling, across-the-line, and spark killer circuits, mainly for suppressing noise occurring in applications
Available for EMI filters, SMPS, Household appliances, such as mixers, fans, coffee grinders, audio, TV, etc

Specifications

Reference Standard IEC 60384-14:2013/AMD:2016 EN 60384-14:2013+A1
Product subclass X2, Y2
Rated voltage 275Vac、300 Vac
Normal capacitance range X2:0.1~2.2μF Y2:0.001~0.027μF
Capacitance Tolerance ±10 %(K)
Climatic category 40/110/21
Passive flammability category C
Voltage test between terminals X2:1800 Vdc 2 s Y2:3000 Vdc 2 s
Voltage test between terminals and case 2100 Vac 60s
Insulation resistance C≤0.33 μF:≥15000 MΩ,C≤0.33 μF:≥5000 s (20℃,100V,1min)
Tangent of loss angle ≤0.0010(1 kHz,20 ℃)

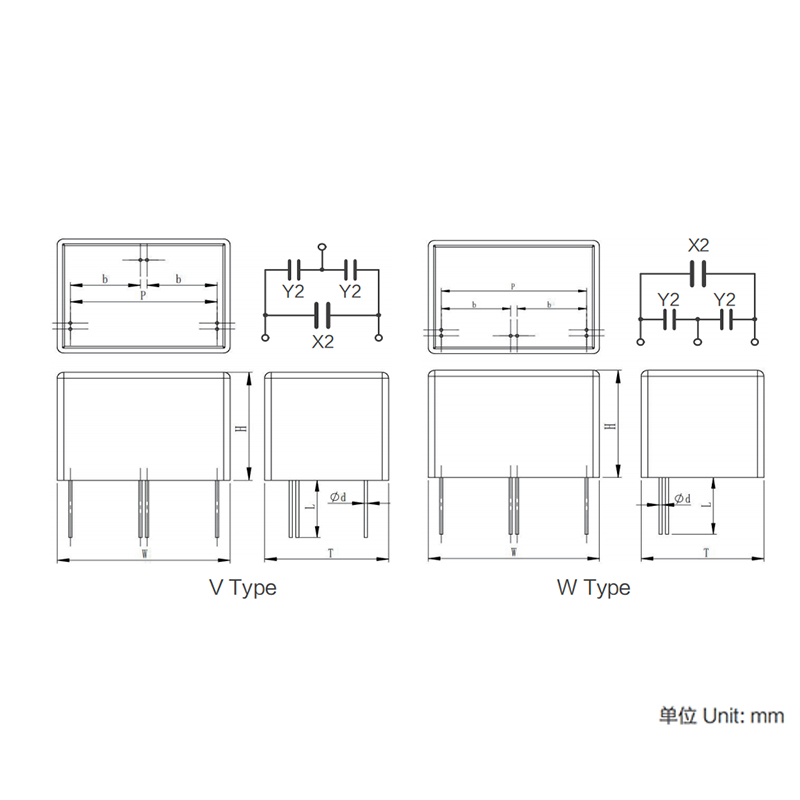

Dimensions(mm)

CR-x2

(uF)

CR-Y2

(μF)

Enclosure Dimensions

Lead Size

W±1

(mm)

H±1

(mm)

T±1

(mm)

P±2

(mm)

b±2

(mm)

φd±0.05

(mm)





0.1

0.001

18

16

10

15

7.5

0.5

0.0022

18

16

10

15

7.5

0.5

0.0047

18

16

10

15

7.5

0.5

0.01

18

19

11

15

10

0.5

0.027

26.5

22

12

22.5

10

0.5







0.22

0.001

18

19

11

15

10

0.5

0.0022

18

19

11

15

10

0.5

0.0033

26.5

20

11

22.5

10

0.5

0.0047

26.5

20

11

22.5

10

0.5

0.01

26.5

20

11

22.5

10

0.5

0.027

26.5

22

12

22.5

10

0.5







0.33

0.001

26.5

20

11

22.5

10

0.5

0.0022

26.5

20

11

22.5

10

0.5

0.0033

26.5

20

11

22.5

10

0.5

0.0047

26.5

22

12

22.5

10

0.5

0.01

26.5

22

12

22.5

10

0.5

0.027

26.5

22

12

22.5

10

0.5







0.47

0.001

26.5

22

12

22.5

10

0.5

0.0022

26.5

22

12

22.5

10

0.5

0.0033

26.5

22

12

22.5

10

0.5

0.0047

26.5

22

12

22.5

10

0.5

0.01

26.5

22

12

22.5

10

0.5

0.025

26

15

16

22.5

10

0.5

0.027

26

15

16

22.5

10

0.5







1

0.00

32

24.5

15

27.5

12.5

0.5

0.0022

32

24.5

15

27.5

12.5

0.5

0.0033

32

24.5

15

27.5

12.5

0.5

0.01

32

24.5

15

27.5

12.5

0.5

0.025

26.5

18

19

22.5

10

0.5

0.027

26.5

18

19

22.5

10

0.5





2.2

0.001

31

30

18

27.5

12.5

0.5

0.022

31

30

18

27.5

12.5

0.5

0.0047

31

30

18

27.5

12.5

0.5

0.01

31

30

18

27.5

12.5

0.5

0.027

32

37

22

27.5

12.5

0.5
