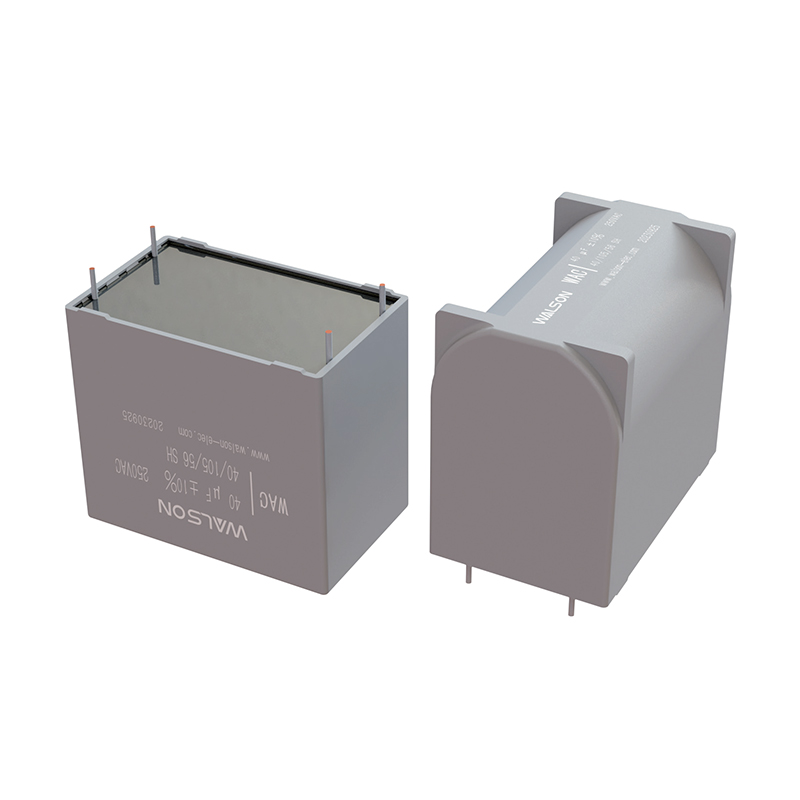

Standard Adopted |
GB/T 17702(IEC 61071) |
|||
Climatic Category |
40/105/56 |
|||
Operating Temperature |
-40~+105℃(+85℃ to+105℃:decreasing factor 1.5%per ℃ for Urms) |
|||
UrmsRated RMS Voltage |
180Vac |
250Vac |
300Vac |
350Vac |
UNRated AC Voltage |
250Vac |
350Vac |
425Vac |
480Vac |
UNRated AC Voltage |
250~630Vac |
|||
Capacitance Range |
0.33~60uF |
|||
Voltage Proof |
2.15Urms or 1.5Un(10s) |
|||
Insulation Resistance (IRxCN) |
≥5000s (20℃,100V,1min) |
|||
DF Dissipation Factor |
≤0.0015(1kHz,20℃) |
CN (μF) |

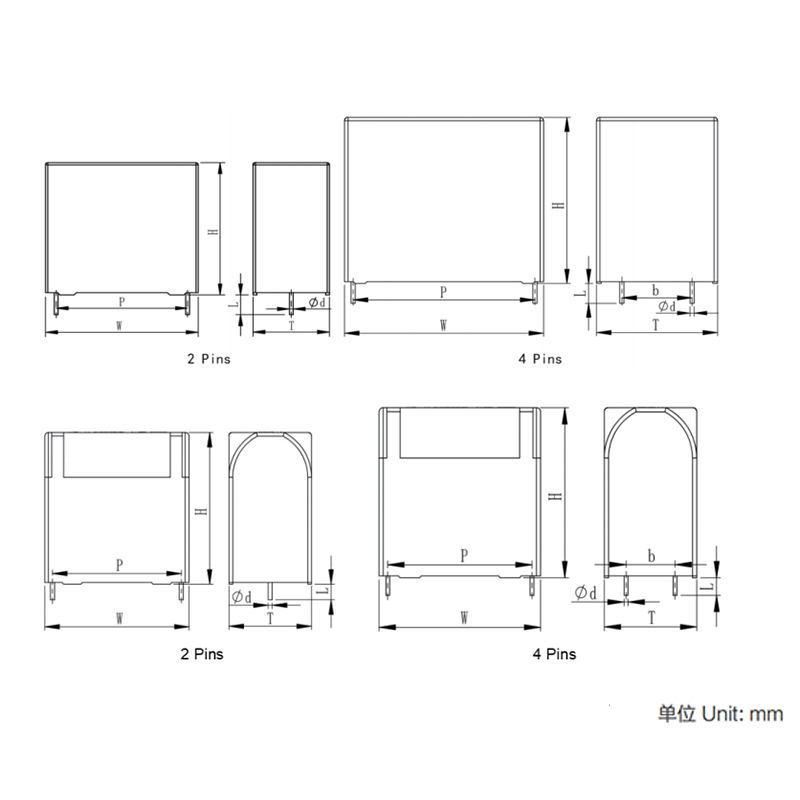

W±1.0 (mm) |
H±1.0 (mm) |
T±1.0 (mm) |
P±0.5 (mm) |
P2±0.5 (mm) |
d (mm) |
RESR @10kHz (mΩ) |
I^ (A) |
ls (A) |
lmax (A) |
|
Urms=180Vac Un=250Vac UNDC=300Vdc | 4 | 32 | 22 | 13 | 27.5 | 1 | 6.7 | 280 | 840 | 7 | |
5 | 32 | 28 | 14 | 27.5 | 1 | 5.3 | 350 | 1050 | 8 | ||
6.8 | 32 | 33 | 18 | 27.5 | 1.2 | 3.9 | 476 | 1428 | 11 | ||
10 | 32 | 33 | 18 | 27.5 | 1.2 | 2.7 | 700 | 2100 | 13 | ||
10 | 41.5 | 32 | 17 | 37.5 | 1.2 | 4.9 | 400 | 1200 | 10 | ||
15 | 41.5 | 37 | 22 | 37.5 | 1.2 | 3.3 | 600 | 1800 | 14 | ||
18 | 42 | 37 | 22 | 37.5 | 1.2 | 2.7 | 720 | 2160 | 14 | ||
20 | 42 | 37 | 22 | 37.5 | 1.2 | 2.5 | 800 | 2400 | 14 | ||
22 | 41.5 | 41 | 26 | 37.5 | 1.2 | 2.2 | 880 | 2640 | 14 | ||
25 | 41.5 | 41 | 26 | 37.5 | 1.2 | 2 | 1000 | 3000 | 14 | ||
30 | 42 | 45 | 30 | 37.5 | 1.2 | 1.6 | 1200 | 3600 | 14 | ||
33 | 42 | 45 | 30 | 37.5 | 1.2 | 1.5 | 1320 | 3960 | 14 | ||
40 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 2.6 | 800 | 2400 | 20 | |
50 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 2.1 | 1000 | 3000 | 24 | |
60 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 1.7 | 1200 | 3600 | 27 | |
Urms=250Vac Un=350Vac UNDC=475Vdc | 1 | 32 | 18 | 9 | 27.5 | 1 | 19.3 | 90 | 270 | 3 | |
1.5 | 32 | 20 | 11 | 27.5 | 1 | 12.9 | 135 | 405 | 4 | ||
2 | 32 | 22 | 13 | 27.5 | 1 | 9.6 | 180 | 540 | 5 | ||
2.2 | 32 | 22 | 13 | 27.5 | 1 | 8.8 | 198 | 594 | 6 | ||
2.5 | 32 | 22 | 13 | 27.5 | 1 | 7.7 | 225 | 675 | 6 | ||
3 | 32 | 28 | 14 | 27.5 | 1 | 6.4 | 270 | 810 | 7 | ||
3.3 | 32 | 28 | 14 | 27.5 | 1 | 5.8 | 297 | 891 | 8 | ||
3.5 | 32 | 28 | 14 | 27.5 | 1 | 5.5 | 315 | 945 | 8 | ||
4 | 32 | 33 | 18 | 27.5 | 1.2 | 4.8 | 360 | 1080 | 10 | ||
4.5 | 32 | 33 | 18 | 27.5 | 1.2 | 4.3 | 405 | 1215 | 10 | ||
5 | 32 | 33 | 18 | 27.5 | 1.2 | 3.9 | 450 | 1350 | 11 | ||
6.8 | 32 | 37 | 22 | 27.5 | 1.2 | 2.8 | 612 | 1836 | 14 | ||
4.7 | 42 | 26 | 15 | 27.5 | 1.2 | 7.8 | 282 | 846 | 7 | ||
5 | 42 | 26 | 15 | 27.5 | 1.2 | 7.3 | 300 | 900 | 8 | ||
6 | 42 | 32 | 17 | 27.5 | 1.2 | 6.1 | 360 | 1080 | 9 | ||
6.5 | 42 | 32 | 17 | 37.5 | 1.2 | 5.6 | 390 | 1170 | 10 | ||
6.8 | 41.5 | 34 | 19 | 37.5 | 1.2 | 5.4 | 408 | 1224 | 10 | ||
7.5 | 41.5 | 34 | 19 | 37.5 | 1.2 | 4.9 | 450 | 1350 | 11 | ||
8 | 42 | 34 | 19 | 37.5 | 1.2 | 4.6 | 480 | 1440 | 121 | ||
10 | 42 | 37 | 22 | 37.5 | 1.2 | 3.7 | 600 | 1800 | 13 | ||
12 | 42 | 37 | 22 | 37.5 | 1.2 | 3 | 720 | 2160 | 14 | ||
15 | 42 | 41 | 26 | 37.5 | 1.2 | 2.4 | 900 | 2700 | 14 | ||
Urms=250Vac Un=350Vac UNDC=475Vdc | 18 | 42 | 45 | 30 | 37.5 | 1.2 | 2 | 1080 | 3240 | 14 | |
20 | 42 | 45 | 30 | 37.5 | 1.2 | 1.8 | 1200 | 3600 | 14 | ||
22 | 42 | 45 | 30 | 37.5 | 1.2 | 1.7 | 1320 | 3960 | 14 | ||
25 | 57.5 | 45 | 30 | 37.5 | 20.3 | 1.2 | 3.3 | 750 | 2250 | 18 | |
30 | 57.5 | 45 | 30 | 37.5 | 20.3 | 1.2 | 2.7 | 900 | 2700 | 20 | |
35 | 57.5 | 50 | 35 | 37.5 | 20.3 | 1.2 | 2.3 | 1050 | 3150 | 23 | |
40 | 57.5 | 50 | 35 | 37.5 | 20.3 | 1.2 | 2 | 1200 | 3600 | 25 | |
Urms=300Vac Un=425Vac UNDC=560Vdc |
1 | 32 | 20 | 11 | 27.5 | 1 | 15.9 | 100 | 300 | 4 | |
1.5 | 32 | 22 | 13 | 27.5 | 1 | 10.6 | 150 | 450 | 5 | ||
2 | 32 | 28 | 14 | 27.5 | 1 | 8.9 | 200 | 600 | 6 | ||
2.2 | 32 | 28 | 14 | 27.5 | 1 | 8 | 220 | 660 | 7 | ||
2.5 | 32 | 28 | 14 | 27.5 | 1 | 7.2 | 250 | 750 | 8 | ||
3 | 32 | 33 | 18 | 27.5 | 1.2 | 6.4 | 300 | 900 | 9 | ||
3.3 | 32 | 33 | 18 | 27.5 | 1.2 | 5.3 | 330 | 990 | 10 | ||
3.5 | 32 | 33 | 18 | 27.5 | 1.2 | 4.8 | 350 | 1050 | 10 | ||
4 | 32 | 33 | 18 | 27.5 | 1.2 | 4.6 | 400 | 1200 | 11 | ||
4.7 | 32 | 37 | 22 | 27.5 | 1.2 | 4 | 470 | 1410 | 13 | ||
5 | 32 | 37 | 22 | 27.5 | 1.2 | 3.4 | 500 | 1500 | 13 | ||
6.8 | 32 | 37 | 22 | 27.5 | 1.2 | 3.2 | 680 | 2040 | 14 | ||
3 | 42 | 26 | 15 | 37.5 | 1.2 | 10.1 | 210 | 630 | 6 | ||
3.3 | 42 | 26 | 15 | 37.5 | 1.2 | 9.2 | 231 | 693 | 7 | ||
3.5 | 42 | 26 | 15 | 37.5 | 1.2 | 8.6 | 245 | 735 | 7 | ||
4 | 41.5 | 32 | 17 | 37.5 | 1.2 | 7.6 | 280 | 840 | 8 | ||
4.5 | 41.5 | 32 | 17 | 37.5 | 1.2 | 6.7 | 315 | 945 | 9 | ||
4.7 | 41.5 | 32 | 17 | 37.5 | 1.2 | 6.4 | 329 | 987 | 9 | ||
5 | 41.5 | 34 | 19 | 37.5 | 1.2 | 6 | 350 | 1050 | 10 | ||
6 | 41.5 | 34 | 19 | 37.5 | 1.2 | 5 | 420 | 1260 | 11 | ||
6.8 | 42 | 37 | 22 | 37.5 | 1.2 | 4.4 | 476 | 1428 | 12 | ||
8 | 42 | 37 | 22 | 37.5 | 1.2 | 3.8 | 560 | 1680 | 13 | ||
10 | 41.5 | 41 | 26 | 37.5 | 1.2 | 3 | 700 | 2100 | 14 | ||
12 | 42 | 45 | 30 | 37.5 | 1.2 | 2.5 | 840 | 2520 | 14 | ||
15 | 42 | 45 | 30 | 37.5 | 1.2 | 2.1 | 1050 | 3150 | 14 | ||
18 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 3.8 | 720 | 2160 | 17 | |
20 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 3.4 | 800 | 2400 | 18 | |
22 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 3.1 | 880 | 2640 | 20 | |
25 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 2.7 | 1000 | 3000 | 21 | |
28 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 2.4 | 1120 | 3360 | 23 | |
Urms=350Vac Un=480Vac UNDC=600Vdc | 0.33 | 32 | 18 | 9 | 27.5 | 0.8 | 53.9 | 36 | 109 | 1.6 | |
0.39 | 32 | 18 | 9 | 27.5 | 0.8 | 46 | 43 | 129 | 1.7 | ||
0.47 | 32 | 18 | 9 | 27.5 | 0.8 | 38.6 | 52 | 155 | 1.9 | ||
0.68 | 32 | 20 | 11 | 27.5 | 0.8 | 27.5 | 75 | 224 | 2.5 | ||
0.82 | 32 | 22 | 13 | 27.5 | 0.8 | 23.3 | 90 | 271 | 3 | ||
1 | 32 | 22 | 13 | 27.5 | 0.8 | 19.6 | 110 | 330 | 3.2 | ||
1.5 | 32 | 28 | 14 | 27.5 | 0.8 | 14 | 165 | 495 | 4.2 | ||
2 | 32 | 30 | 16 | 27.5 | 0.8 | 11.1 | 220 | 660 | 5 | ||
2.2 | 32 | 30 | 16 | 27.5 | 0.8 | 10.4 | 242 | 726 | 5.2 | ||
2.5 | 32 | 33 | 18 | 27.5 | 1 | 7 | 275 | 825 | 6.2 | ||
3 | 32 | 33 | 18 | 27.5 | 1 | 6.1 | 330 | 990 | 6.5 | ||
3.3 | 32 | 37 | 22 | 27.5 | 1 | 5.3 | 363 | 1089 | 7.4 | ||
3.5 | 32 | 37 | 22 | 27.5 | 1 | 5 | 385 | 1155 | 7.7 | ||
4 | 32 | 37 | 22 | 27.5 | 1 | 4.4 | 440 | 1320 | 7.9 | ||
1.5 | 42 | 26 | 15 | 27.5 | 1 | 19.3 | 113 | 338 | 8.2 | ||
2 | 42 | 26 | 15 | 27.5 | 1 | 14.9 | 150 | 450 | 2.8 | ||
2.2 | 42 | 26 | 15 | 27.5 | 1 | 13.7 | 165 | 495 | 3.7 | ||
2.5 | 42 | 30 | 16 | 37.5 | 1 | 12.3 | 188 | 563 | 4.6 | ||
3 | 42 | 30 | 16 | 37.5 | 1 | 10.5 | 225 | 675 | 4.8 | ||
3.3 | 41.5 | 32 | 17 | 37.5 | 1 | 9.7 | 248 | 743 | 5.3 | ||
3.5 | 41.5 | 32 | 17 | 37.5 | 1 | 9.3 | 263 | 788 | 5.7 | ||
4 | 41.5 | 34 | 19 | 37.5 | 1 | 8.3 | 300 | 900 | 6.2 | ||
4.5 | 42 | 37 | 22 | 37.5 | 1 | 7.6 | 338 | 1013 | 6.4 | ||
5 | 42 | 37 | 22 | 37.5 | 1 | 7 | 375 | 1125 | 7 | ||
5.5 | 42 | 37 | 22 | 37.5 | 1 | 6.6 | 413 | 1238 | 8 | ||
6 | 42 | 44 | 24 | 37.5 | 1 | 6.2 | 450 | 1350 | 8.3 | ||
6.5 | 41.5 | 44 | 24 | 37.5 | 1 | 5.8 | 488 | 1463 | 8.6 | ||
7 | 41.5 | 44 | 24 | 52.5 | 1 | 5.5 | 525 | 1575 | 9.7 | ||
7.5 | 41.5 | 41 | 26 | 52.5 | 1 | 5.3 | 563 | 1688 | 10 | ||
8 | 41.5 | 41 | 26 | 52.5 | 1 | 5.1 | 600 | 1800 | 10.3 | ||
8.5 | 42 | 43 | 30 | 52.5 | 1 | 4.9 | 638 | 1913 | 10.5 | ||
9 | 42 | 45 | 30 | 52.5 | 1 | 4.7 | 675 | 2025 | 10.5 | ||
9.5 | 42 | 45 | 30 | 52.5 | 1 | 4.5 | 713 | 2138 | 10.5 | ||
10 | 42 | 45 | 30 | 52.5 | 1 | 4.4 | 750 | 2250 | 10.5 | ||
10 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 5.7 | 450 | 1350 | 11.6 | |
11 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 5.3 | 495 | 1485 | 11.9 | |
12 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 4.4 | 540 | 1620 | 14.1 | |
15 | 57.5 | 45 | 30 | 52.5 | 20.3 | 1.2 | 3.7 | 675 | 2025 | 16.4 | |
16 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 3.5 | 720 | 2160 | 16.8 | |
18 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 3.2 | 810 | 2430 | 18.1 | |
20 | 57.5 | 50 | 35 | 52.5 | 20.3 | 1.2 | 2.9 | 900 | 2700 | 19.8 |
